Alimentation en huile, turbocompresseur for BMW 4 Series G23 Cabriolet LCI 430i (2023)

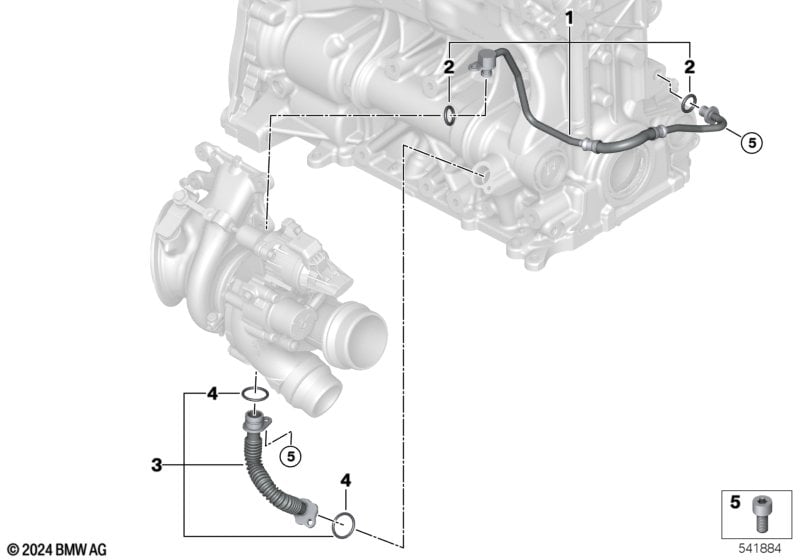

This Alimentation en huile, turbocompresseur technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Cabriolet LCI 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Technologie d'échappement C6B RDE ou Fournitures supplémentaires |
S1DDA=Oui S1DZA=Oui |
||||||||
| 01 | conduite d'alim. en huile | 1 | 11428489607 | Shop at ECS Tuning | ||||||
| 02 | Joint torique | 9,0X2,0MM | 2 | 07148846148 | Shop at ECS Tuning | |||||
| 03 | Conduite de retour d'huile | 1 | 11428489608 | Shop at ECS Tuning | ||||||
| 04 | Joint torique | 16X2MM | 2 | 11428604872 | Shop at ECS Tuning | |||||
| 05 | Vis Isa | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
