Carter d'huile for BMW 3 Series G20 Berline LCI M340i (2023)

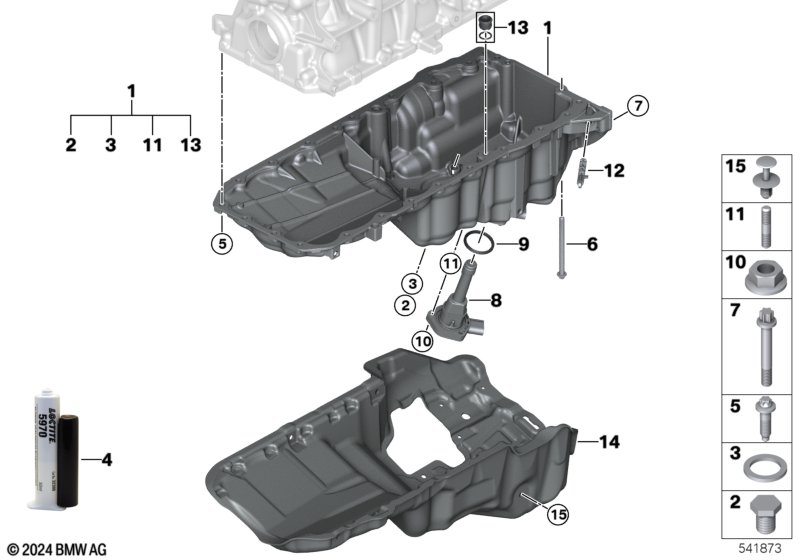

This Carter d'huile technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Berline LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter d'huile | 1 | 11138595462 | Shop at ECS Tuning | ||||||
| 02 | Vis bouchon | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 03 | Anneau d'étanchéité | A12X16-CU | 1 | 07119963132 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Joint liquide Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 05 | Vis ASA | M8X30 | 22 | 11138592611 | Shop at ECS Tuning | |||||
| 06 | Vis Torx | M8X110 | 2 | 11137800625 | Shop at ECS Tuning | |||||
| 07 | Vis ASA | M8X50-8.8-ZNS3 | 3 | 23001222887 | $1.13 | Shop at ECS Tuning | ||||
| 08 | Capteur de niveau d'huile | 1 | 12615A740A3 | Shop at ECS Tuning | ||||||
| 09 | Joint | 1 | 12619454471 | Shop at ECS Tuning | ||||||
| 10 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Tige filetée | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 12 | Bouchon | 1 | 11117536143 | $0.67 | Shop at ECS Tuning | |||||
| 13 | Valve antiretour | 1 | 11135A92EA9 | Shop at ECS Tuning | ||||||
| 14 | Capot insonorisant carter d'huile | 1 | 11149452663 | Shop at ECS Tuning | ||||||
| 15 | Rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Berline LCI M340i Carter d'huile?
- This technical diagram illustrates the Carter d'huile within the Moteur group for the 3 Series G20 Berline LCI M340i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Carter d'huile (Part #11138595462).
- Which models use the hardware listed in this Carter d'huile?
- The hardware and components featured in the Carter d'huile are specific to the 3 Series G20 Berline LCI M340i produced during 2023. These technical specifications ensure that parts like the Carter d'huile (11138595462) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carter d'huile assembly?
- Each item in the Carter d'huile corresponds to the numbered list below the illustration. For the 3 Series G20 Berline LCI M340i, you can identify the Carter d'huile by locating its position on the schematic, which then links to the official BMW part number 11138595462 for the Moteur section.
