Entraînement par courroie/damper for BMW 3 Series G20 Berline LCI M340i (2023)

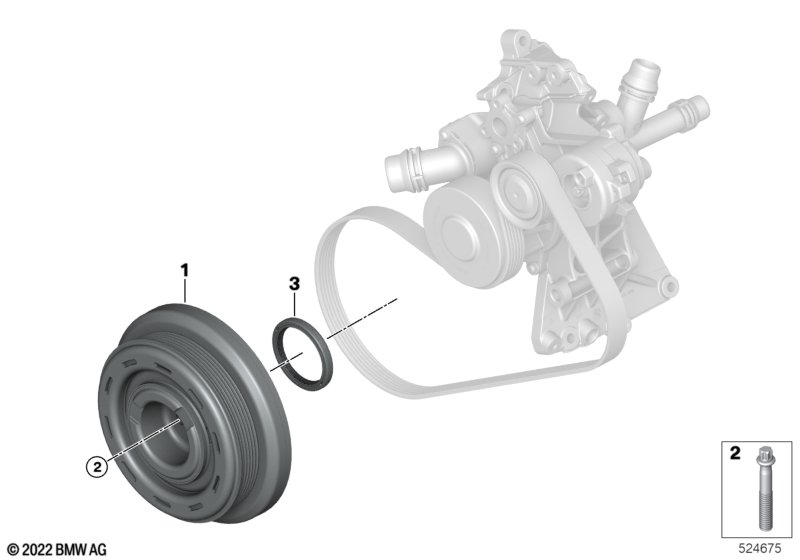

This Entraînement par courroie/damper technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Berline LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amortisseur de vibrations | 1 | 11239453608 | Shop at ECS Tuning | ||||||
| 02 | Vis ASA | M10X65 | 4 | 11238585220 | Shop at ECS Tuning | |||||
| 03 | Joint d'arbre | 55X68X8 | 1 | 11118664905 | Shop at ECS Tuning |
