Alimentat.d'huile-filtre, nid radiateur for BMW 3 Series G20 Berline LCI M340i (2023)

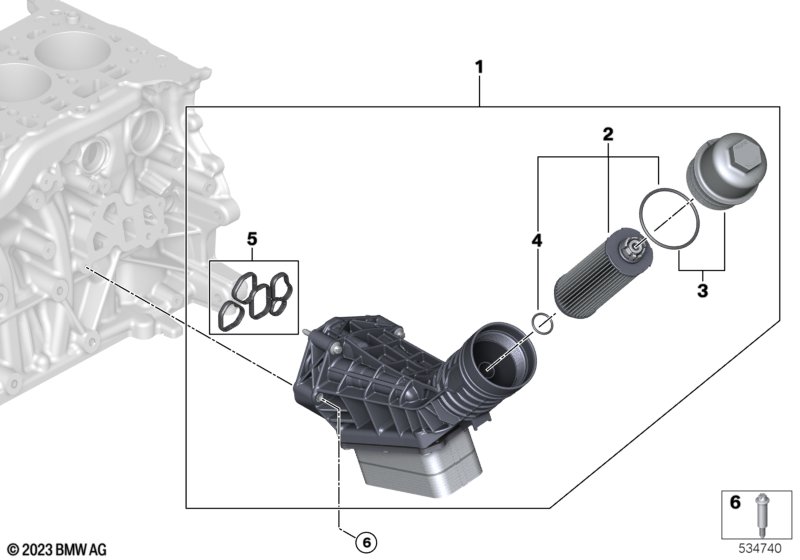

This Alimentat.d'huile-filtre, nid radiateur technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Berline LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtre à huile | 1 | 11429453682 | Shop at ECS Tuning | ||||||
| 02 | Kit cartouche de filtre à huile | 1 | 05/2025 | 11427826799 | Shop at ECS Tuning | |||||
| 02 | Kit cartouche de filtre à huile | 1 | 11425B4C845 | Shop at ECS Tuning | ||||||
| 03 | Couvercle de filtre à huile | 1 | 11427926064 | Shop at ECS Tuning | ||||||
| 04 | Anneau d'étanchéité | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Pochette de Joints | 1 | 11425A473E7 | Shop at ECS Tuning | ||||||
| 06 | Vis ASA | M6X49,5 | 6 | 11428585734 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Berline LCI M340i Alimentat.d'huile-filtre, nid radiateur?
- This technical diagram illustrates the Alimentat.d'huile-filtre, nid radiateur within the Moteur group for the 3 Series G20 Berline LCI M340i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Filtre à huile (Part #11429453682).
- Which models use the hardware listed in this Alimentat.d'huile-filtre, nid radiateur?
- The hardware and components featured in the Alimentat.d'huile-filtre, nid radiateur are specific to the 3 Series G20 Berline LCI M340i produced during 2023. These technical specifications ensure that parts like the Filtre à huile (11429453682) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alimentat.d'huile-filtre, nid radiateur assembly?
- Each item in the Alimentat.d'huile-filtre, nid radiateur corresponds to the numbered list below the illustration. For the 3 Series G20 Berline LCI M340i, you can identify the Filtre à huile by locating its position on the schematic, which then links to the official BMW part number 11429453682 for the Moteur section.
