Pièces de bloc-moteur for BMW 3 Series E46 318d (2003)

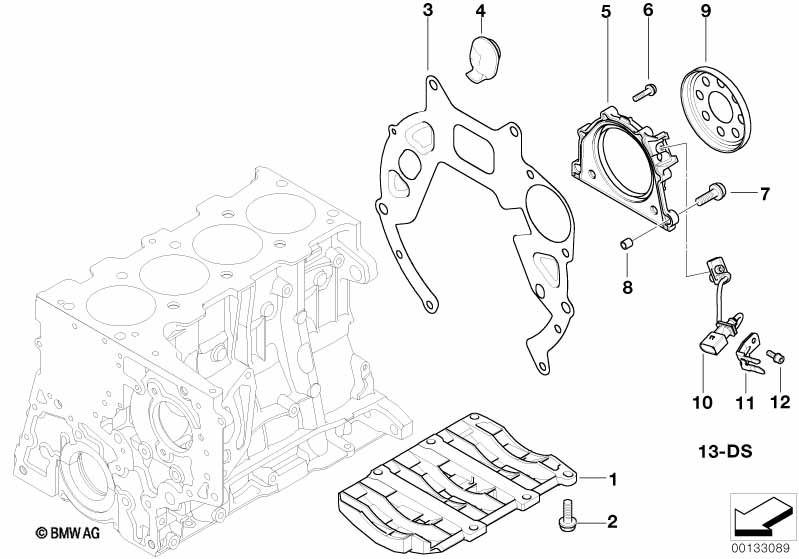

This Pièces de bloc-moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Enveloppe de renforcement | 1 | 11117791532 | Shop at ECS Tuning | ||||||
| 02 | Vis six pans avec rondelle | M8X28-ZNNIV SI | 6 | 07119905530 | $0.71 | Shop at ECS Tuning | ||||
| 03 | Tôle de recouvrement | 1 | 11147789874 | Shop at ECS Tuning | ||||||
| 04 | Couvercle de fermeture | 1 | 11141730453 | $3.22 | Shop at ECS Tuning | |||||
| 05 | Couvercle d'extrémité avec joint d'arbre | 1 | 11147787262 | $86.79 | Shop at ECS Tuning | |||||
| 06 | Vis six pans avec rondelle | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Vis six pans avec rondelle | M8X28-ZNNIV SI | 2 | 07119905530 | $0.71 | Shop at ECS Tuning | ||||
| 08 | Douille d'ajustage | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Couronne d'impulsions de capteur | 1 | 11217787237 | $36.43 | Shop at ECS Tuning | |||||
| 10 | Capteur vilebrequin | 1 | 13627809334 | $74.87 | Shop at ECS Tuning | |||||
| 11 | Support boitier de fiche | 1 | 13627804172 | $2.22 | Shop at ECS Tuning | |||||
| 12 | Vis Isa | M6X12 | 1 | 07129904831 | $1.20 | Shop at ECS Tuning | ||||
| 13 | Pochette joints carter mot. sans amiante | 1 | 11110394505 | Shop at ECS Tuning |
