Préchauffage circuit de refroidissement for BMW 7 Series E32 750i

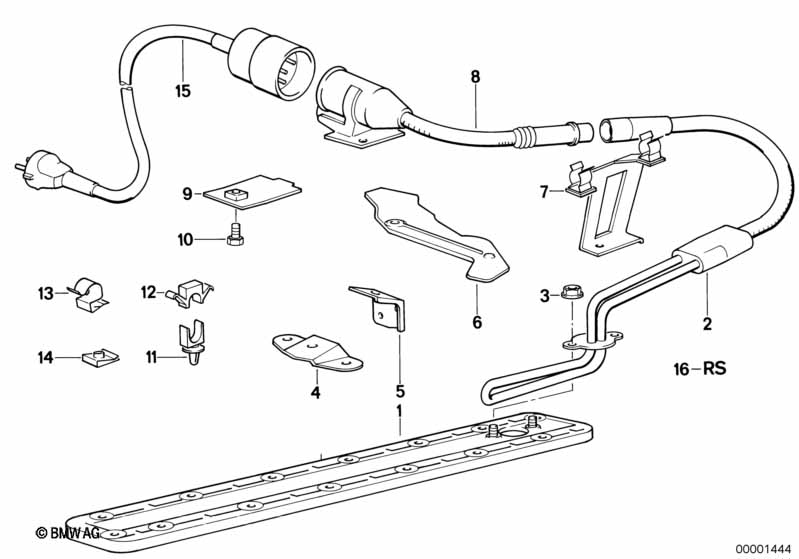

This Préchauffage circuit de refroidissement technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Capôt de protection | 1 | 11141715837 | Shop at ECS Tuning | ||||||
| 02 | Appareil de pre-chauffage | 220 V/750W | 1 | 12811718706 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Attache-câble | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| -- | Joint sans amiante | 1 | 11141736959 | $25.13 | SI 170190201 | Shop at ECS Tuning | ||||
| 03 | Ecrou six pans avec plaque | M6 ZNT | 2 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 12811720285 | arrêté | Shop at ECS Tuning | |||||
| 05 | Support | 1 | 12811720286 | arrêté | Shop at ECS Tuning | |||||
| 06 | Support | 1 | 12811720283 | arrêté | Shop at ECS Tuning | |||||
| 08 | Conduite | 220 V | 1 | 12511719732 | arrêté | Shop at ECS Tuning | ||||
| 09 | Support | 1 | 12521719704 | $5.02 | arrêté | Shop at ECS Tuning | ||||
| 10 | Vis six pans avec rondelle | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Attache-câble | 1 | 12511287301 | $0.68 | arrêté | Shop at ECS Tuning | ||||
| 12 | Collier | 1 | 12511287300 | $0.83 | Shop at ECS Tuning | |||||
| 13 | Support | 1 | 12521719734 | $0.63 | Shop at ECS Tuning | |||||
| 14 | C-clip ecrou | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 15 | Jeu de câbles | 220 V / ECE-DIN | 1 | 12822241963 | arrêté | Shop at ECS Tuning | ||||
| 16 | Nec pre-chauffage carter moteur | 220 V | 1 | 12801729600 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- SI = Service-Information (Information Service)
