Pièces d'alternateur 90A for BMW 3 Series E36 325i (1995)

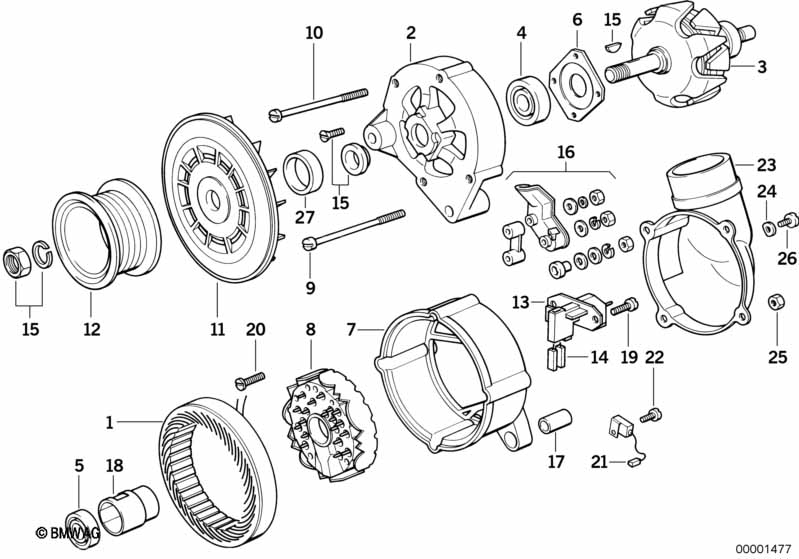

This Pièces d'alternateur 90A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | NE CONVENANT QU'AVEC ALTERNATEUR BOSCH Typ Nr. 0 120 469 969 BMW Nr. 12 31 1 730 752 / 1 735 402 |
|||||||||
| 01 | Inducteur | 1 | 12311727759 | $309.13 | arrêté | Shop at ECS Tuning | ||||
| 02 | Palier de traction | 1 | 12311738093 | $67.24 | arrêté | Shop at ECS Tuning | ||||
| 03 | Rotor | 1 | 12311738094 | $162.94 | arrêté | Shop at ECS Tuning | ||||
| 04 | Roulement à rainure | 52X17X17 | 1 | 12311747246 | $51.53 | arrêté | Shop at ECS Tuning | |||
| 05 | Roulement à rainure | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 06 | Plaque de maintien | 1 | 12311747247 | $3.35 | Shop at ECS Tuning | |||||
| 07 | Bague | 1 | 12311738098 | $59.43 | arrêté | Shop at ECS Tuning | ||||
| 08 | Diode du corps | 1 | 12311735307 | arrêté | Shop at ECS Tuning | |||||
| 09 | Vis à tête bombée | 3 | 12311738099 | $1.80 | Shop at ECS Tuning | |||||
| 10 | Vis à tête bombée | 1 | 12311738101 | $2.77 | Shop at ECS Tuning | |||||
| 11 | Ventilateur | BOSCH/D=146MM | 1 | 12311726934 | $37.08 | Shop at ECS Tuning | ||||
| 12 | Poulie | D=61,8MM | 1 | 12311738067 | $56.08 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Anneau | 1 | 12311738190 | $5.35 | arrêté | Shop at ECS Tuning | ||||
| 13 | Regulateur | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 14 | Jeu de balais en charbon | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 15 | Necessaire de reparation rotor | 1 | 12311727762 | $18.57 | arrêté | Shop at ECS Tuning | ||||
| 16 | Necessaire de montage | B+/D* | 1 | 12311747252 | $9.57 | Shop at ECS Tuning | ||||
| 17 | Douille | 1 | 12311738103 | $12.08 | arrêté | Shop at ECS Tuning | ||||
| 18 | Anneau | 1 | 12311735305 | $2.73 | Shop at ECS Tuning | |||||
| 19 | Vis cylindrique | 2 | 12311747251 | $0.58 | arrêté | Shop at ECS Tuning | ||||
| 20 | Vis | 5 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 21 | Condens.d'antiparasit.alternateur | BOSCH | 1 | 12311356564 | $18.88 | +vieille matière | Shop at ECS Tuning | |||
| 22 | Vis cylindrique | AM5X10 | 1 | 07119919412 | arrêté | Shop at ECS Tuning | ||||
| 23 | Raccord tuyau d'admission d'air | BOSCH | 1 | 12311730687 | $17.74 | arrêté | Shop at ECS Tuning | |||
| 24 | Rondelle elastique | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 25 | Ecrou à six pans | M8-8-ZNS3 | 3 | 12/1995 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 25 | Ecrou à six pans | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 26 | Vis à tête bombée | M5X12-ZN | 1 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
