Pièces d'alternateur 80A for BMW 3 Series E30 325e (1988)

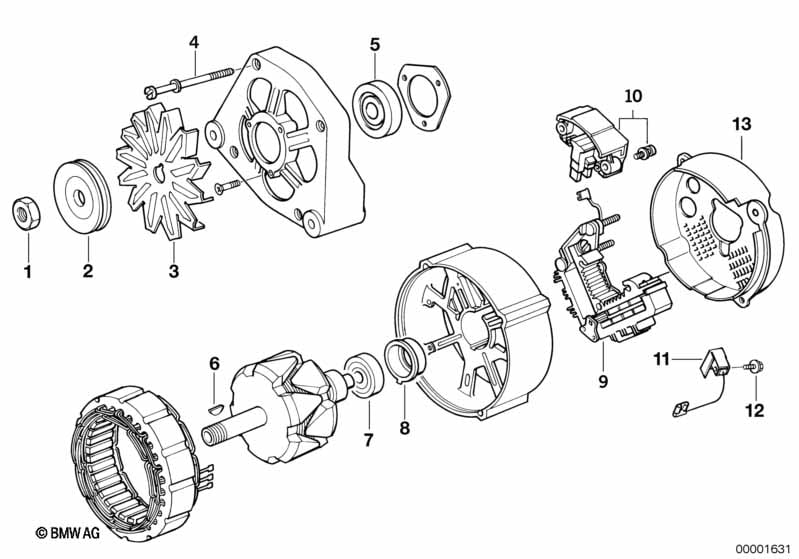

This Pièces d'alternateur 80A technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | NE CONVENANT QU'AVEC ALTERNATEUR VALEO | |||||||||
| ne convenant qu'avec | ||||||||||
| -- | Alternateur | X | 12311730257 | Shop at ECS Tuning | ||||||
| -- | ES-Alternateur | X | 12311730296 | $262.26 | Shop at ECS Tuning | |||||
| 01 | Ecrou à six pans | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | Shop at ECS Tuning | ||||
| 02 | Poulie | 1 | 12311726376 | $28.87 | arrêté | Shop at ECS Tuning | ||||
| 03 | Ventilateur | 1 | 12311726375 | $9.45 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis à tête bombée | 4 | 12311739201 | $8.95 | Shop at ECS Tuning | |||||
| 05 | Roulement à rainure | 47X17X14 | 1 | 12311722979 | $33.90 | arrêté | Shop at ECS Tuning | |||
| 06 | Rondelle ressort | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Roulement à rainure | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 08 | Anneau d'étanchéité | 1 | 12311739205 | $6.79 | Shop at ECS Tuning | |||||
| 09 | Redresseur | 1 | 12311739198 | $122.28 | arrêté | Shop at ECS Tuning | ||||
| 10 | Regulateur | VALEO | 1 | 12311739193 | $124.68 | arrêté | Shop at ECS Tuning | |||
| 11 | Condens.d'antiparasit.alternateur | VALEO | 1 | 12311727948 | $18.51 | Shop at ECS Tuning | ||||
| 12 | Vis six pans avec rondelle | M6X10-Z1 | 1 | 07119915057 | $3.05 | Shop at ECS Tuning | ||||
| 13 | Capuchon d'aeration | 1 | 12311739204 | $7.10 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
