Démarreur for BMW E169 (F 650, F 650 ST) F 650 94 (0161)

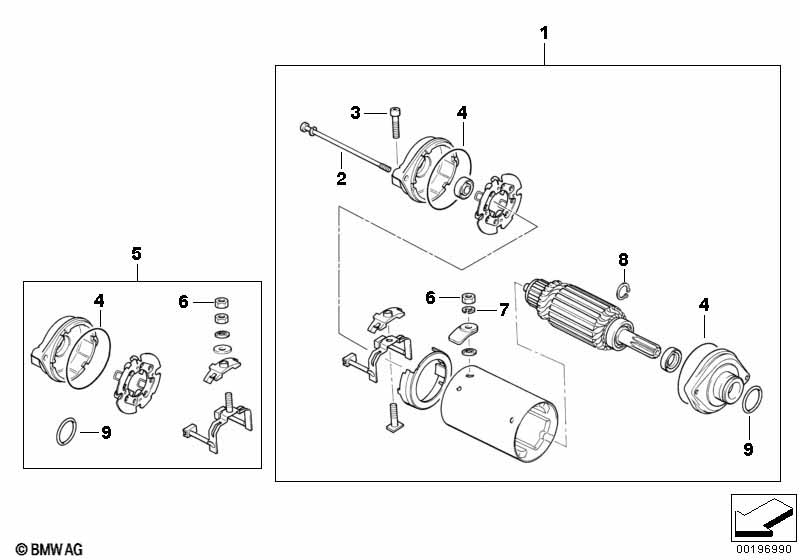

This Démarreur technical drawing provides a detailed breakdown of the assembly for the E169 (F 650, F 650 ST) F 650 94 (0161). It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Démarreur argenté | 1 | 12412343511 | $446.68 | +vieille matière | Shop at ECS Tuning | ||||
| 01 | Démarreur noir | 1 | 11447709449 | $481.48 | +vieille matière | Shop at ECS Tuning | ||||
| 02 | Vis cylindrique | M5X127 | 2 | 12/1999 | 12412343149 | arrêté | Shop at ECS Tuning | |||
| 03 | Vis Isa | M6X30-8.8-ZNNIV | 2 | 12/1999 | 07129905386 | $0.86 | Shop at ECS Tuning | |||
| 04 | Joint torique | 62X1,5 | 2 | 12/1999 | 12412343253 | $5.74 | Shop at ECS Tuning | |||
| 05 | Kit de réparation démarreur | 1 | 12/1999 | 12412343512 | $212.64 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 06 | Ecrou six pans avec plaque | AM6-8-ZNNIV SI | 1 | 12/1999 | 07129905542 | $0.47 | Shop at ECS Tuning | |||
| 07 | Rondelle élastique noire | B6-ZN | 1 | 12/1999 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 07 | Plaque d'appui | 5-200 HV-ZNNIV | 1 | 12/1999 | 07119904446 | Shop at ECS Tuning | ||||
| 08 | Bague de securité | 15X1-ZN | 1 | 12/1999 | 07119934082 | $0.56 | Shop at ECS Tuning | |||
| 09 | Joint torique | 24,4X3,1 | 1 | 12/1999 | 12412343252 | $2.67 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW E169 (F 650, F 650 ST) F 650 94 (0161) Démarreur?
- This technical diagram illustrates the Démarreur within the Electricité moteur group for the E169 (F 650, F 650 ST) F 650 94 (0161). It provides a detailed exploded view of the components, identifying key parts such as the Démarreur argenté (Part #12412343511).
- Which models use the hardware listed in this Démarreur?
- The hardware and components featured in the Démarreur are specific to the E169 (F 650, F 650 ST) F 650 94 (0161). These technical specifications ensure that parts like the Démarreur argenté (12412343511) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Démarreur assembly?
- Each item in the Démarreur corresponds to the numbered list below the illustration. For the E169 (F 650, F 650 ST) F 650 94 (0161), you can identify the Démarreur argenté by locating its position on the schematic, which then links to the official BMW part number 12412343511 for the Electricité moteur section.
