Pièces d'alternateur for BMW 1502-2002tii 1802 (1973)

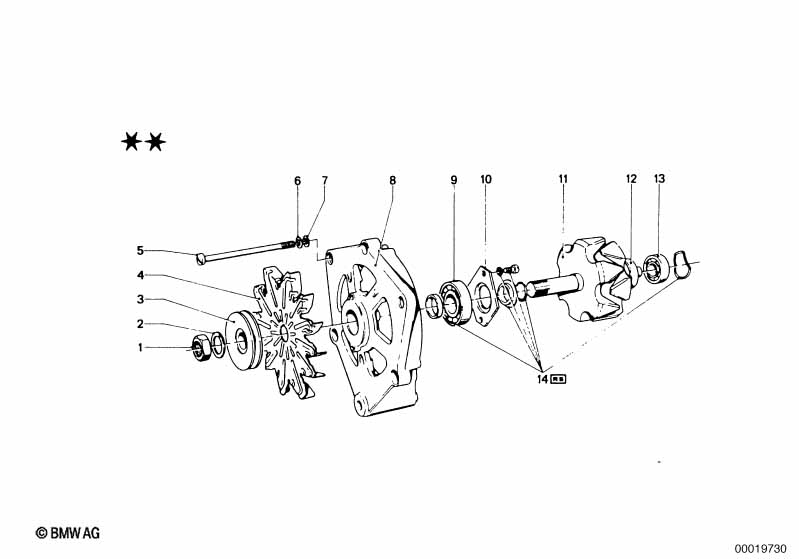

This Pièces d'alternateur technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ecrou à six pans | 1 | 12318602176 | $0.86 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rondelle elastique | B14 | 1 | 07119932149 | arrêté | Shop at ECS Tuning | ||||
| 03 | Poulie | 1 | 12311356300 | $18.70 | arrêté | Shop at ECS Tuning | ||||
| 04 | Ventilateur | 1 | 12311350199 | $14.54 | Shop at ECS Tuning | |||||
| 05 | Vis cylindrique | 1 | 12311350346 | arrêté | Shop at ECS Tuning | |||||
| 06 | Rondelle | 10X5,3X1-200 HV | 3 | 07119904206 | Shop at ECS Tuning | |||||
| 06 | Plaque d'appui | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Palier de traction | 1 | 02/1962 | 07/1977 | 12311350338 | arrêté | Shop at ECS Tuning | |||
| 09 | Roulement à rainure | 40X17X12 | 1 | 12311714522 | $17.93 | arrêté | Shop at ECS Tuning | |||
| 10 | Plaque de maintien | 1 | 12311459279 | $1.12 | arrêté | Shop at ECS Tuning | ||||
| 11 | Rotor | 1 | 09/1965 | 07/1977 | 12311350331 | arrêté | Shop at ECS Tuning | |||
| 12 | Bague | 1 | 12311354689 | arrêté | Shop at ECS Tuning | |||||
| 13 | Roulement à rainure | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 14 | Necessaire de reparation rotor | 1 | 12311350332 | $14.45 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
