Démarreur for BMW 7 Series E32 730i (1993)

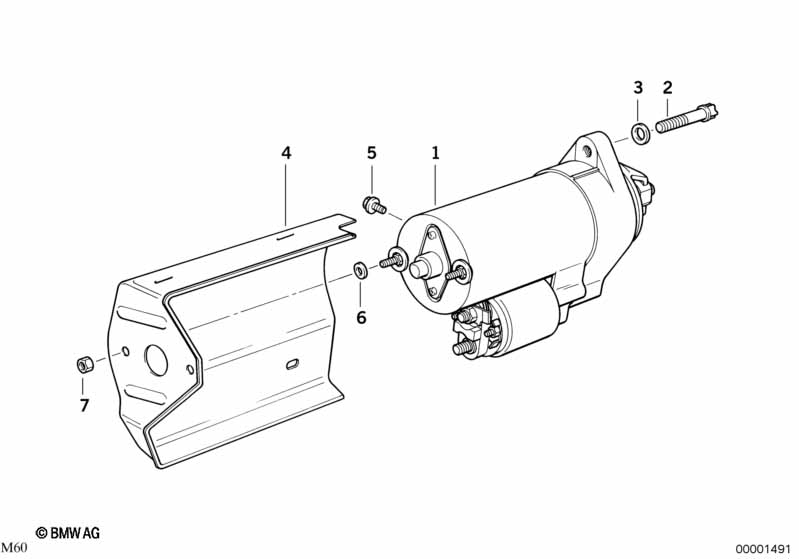

This Démarreur technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Démarreur | 1,7 KW | 1 | 12411729981 | $410.02 | Shop at ECS Tuning | ||||
| 02 | Vis Torx | M10X60 | 2 | 12411434052 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Plaque d'appui | 10-200HV-ZNNIV | 2 | 07119907114 | Shop at ECS Tuning | |||||
| 05 | Vis six pans avec rondelle | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 06 | Plaque d'appui | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Ecrou combiné | 2 | 07147305178 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Démarreur?
- This technical diagram illustrates the Démarreur within the Electricité du moteur group for the 7 Series E32 730i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Démarreur (Part #12411729981).
- Which models use the hardware listed in this Démarreur?
- The hardware and components featured in the Démarreur are specific to the 7 Series E32 730i produced during 1993. These technical specifications ensure that parts like the Démarreur (12411729981) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Démarreur assembly?
- Each item in the Démarreur corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Démarreur by locating its position on the schematic, which then links to the official BMW part number 12411729981 for the Electricité du moteur section.
