Pièces d'alternateur 140A for BMW 7 Series E32 730i (1993)

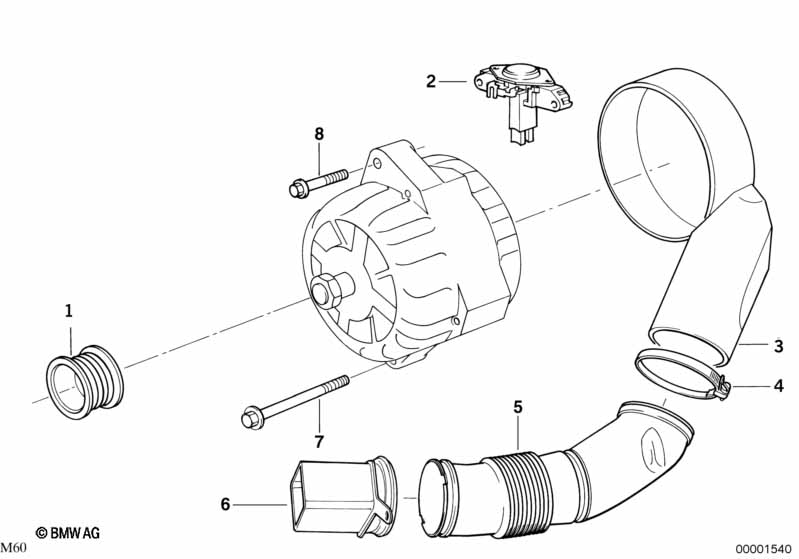

This Pièces d'alternateur 140A technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | NE CONVENANT QU'AVEC ALTERNATEUR BOSCH Typ Nr. 0 123 214 002 BMW Nr. 12 31 1 747 204 / 1 704 082 |
|||||||||
| 01 | Poulie d alternateur | D=45MM | 1 | 12311733782 | $42.83 | Shop at ECS Tuning | ||||
| ne convenant qu'avec | ||||||||||
| -- | Alternateur compact | 140A | X | 12311747204 | $651.32 | arrêté | Shop at ECS Tuning | |||
| 02 | Regulateur | BOSCH | 1 | 12311747920 | $157.93 | arrêté | Shop at ECS Tuning | |||
| ne convenant qu'avec | ||||||||||
| -- | Alternateur compact | 140A | X | 12311747204 | $651.32 | arrêté | Shop at ECS Tuning | |||
| 03 | Conduite d'air | F.GENERATOR | 1 | 12311747208 | $28.75 | Shop at ECS Tuning | ||||
| ne convenant qu'avec | ||||||||||
| -- | Alternateur compact | 140A | X | 12311747204 | $651.32 | arrêté | Shop at ECS Tuning | |||
| 04 | Collier | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| ne convenant qu'avec | ||||||||||
| -- | Alternateur compact | 140A | X | 12311747204 | $651.32 | arrêté | Shop at ECS Tuning | |||
| 05 | Conduite d'air | 1 | 12311747185 | $10.42 | Shop at ECS Tuning | |||||
| ne convenant qu'avec | ||||||||||
| -- | Alternateur compact | 140A | X | 12311747204 | $651.32 | arrêté | Shop at ECS Tuning | |||
| 06 | Raccord | 1 | 12311736110 | $6.07 | Shop at ECS Tuning | |||||
| ne convenant qu'avec | ||||||||||
| -- | Alternateur compact | 140A | X | 12311747204 | $651.32 | arrêté | Shop at ECS Tuning | |||
| 08 | Vis six pans avec rondelle | M8X45-Z3 | 2 | 07119912970 | $0.41 | Shop at ECS Tuning | ||||
| ne convenant qu'avec | ||||||||||
| -- | Alternateur compact | 140A | X | 12311747204 | $651.32 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
