Coffret de boîtiers de commande for BMW 5 Series G60 Berline 550eX (2025)

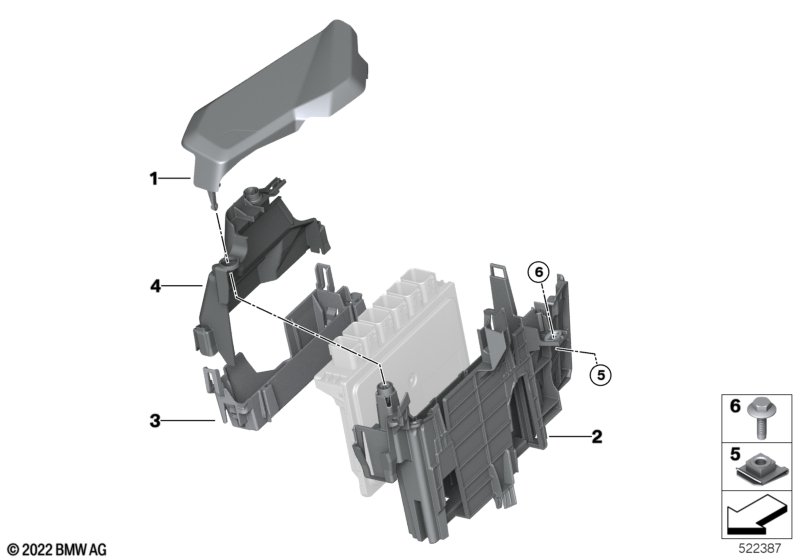

This Coffret de boîtiers de commande technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Berline 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cache | 1 | 12909454035 | Shop at ECS Tuning | ||||||
| 02 | Fixation | 1 | 12909454034 | NoS | Shop at ECS Tuning | |||||
| 03 | Fixation | SVM | 1 | 12909846777 | Shop at ECS Tuning | |||||
| 04 | Fixation | 1 | 12909846778 | Shop at ECS Tuning | ||||||
| 05 | Ecrou de serrage | 1 | 07148654556 | Shop at ECS Tuning | ||||||
| 06 | Vis six pans | 2 | 07149377586 | Shop at ECS Tuning |
Note
- NoS = No Stock (Pièce pas en stock dans magasin central)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Berline 550eX Coffret de boîtiers de commande?
- This technical diagram illustrates the Coffret de boîtiers de commande within the Electricité du moteur group for the 5 Series G60 Berline 550eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cache (Part #12909454035).
- Which models use the hardware listed in this Coffret de boîtiers de commande?
- The hardware and components featured in the Coffret de boîtiers de commande are specific to the 5 Series G60 Berline 550eX produced during 2025. These technical specifications ensure that parts like the Cache (12909454035) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coffret de boîtiers de commande assembly?
- Each item in the Coffret de boîtiers de commande corresponds to the numbered list below the illustration. For the 5 Series G60 Berline 550eX, you can identify the Cache by locating its position on the schematic, which then links to the official BMW part number 12909454035 for the Electricité du moteur section.
