Carburateur 4A1 for BMW 7 Series E23 728 (1979)

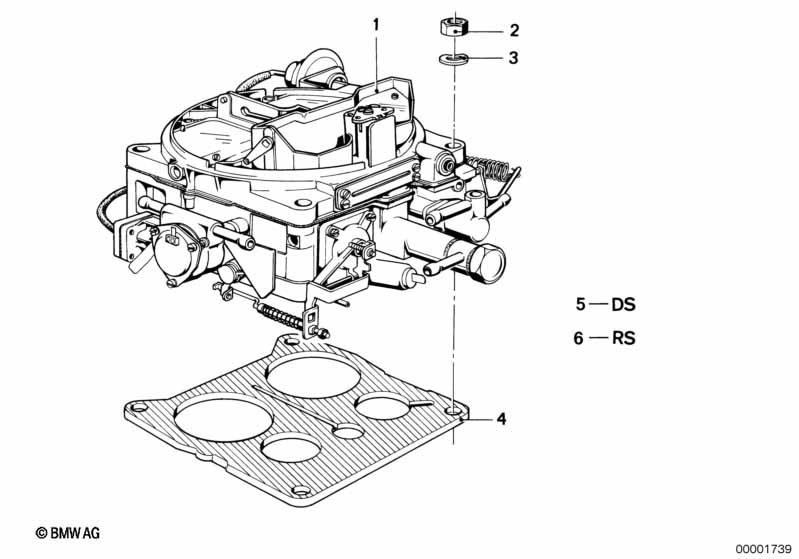

This Carburateur 4A1 technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ES-Carburateur | 4A1 | 1 | 13111264288 | $1249.92 | arrêté | Shop at ECS Tuning | |||
| 02 | Ecrou à six pans | M8-ZNS | 4 | 07119922856 | $0.56 | arrêté | Shop at ECS Tuning | |||
| 03 | Rondelle elastique | B8 | 4 | 09/1979 | 07119932095 | $0.09 | arrêté | Shop at ECS Tuning | ||
| 04 | Bride isolante | 4A1 | 1 | 13111271961 | $23.17 | Shop at ECS Tuning | ||||
| 05 | Pochette joints carburateur | 4A1 | 1 | 13111264958 | $101.69 | Shop at ECS Tuning | ||||
| 06 | Necessaire de reparation carburateur | 4A1 | 1 | 13111264957 | $158.47 | arrêté | Shop at ECS Tuning | |||
| 06 | Kit de réparation vis | 4A1 | 1 | 13111277734 | $44.92 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Carburateur 4A1?
- This technical diagram illustrates the Carburateur 4A1 within the Formation du mélange group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the ES-Carburateur (Part #13111264288).
- Which models use the hardware listed in this Carburateur 4A1?
- The hardware and components featured in the Carburateur 4A1 are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the ES-Carburateur (13111264288) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburateur 4A1 assembly?
- Each item in the Carburateur 4A1 corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the ES-Carburateur by locating its position on the schematic, which then links to the official BMW part number 13111264288 for the Formation du mélange section.
