Tuyau de depression for BMW 5 Series E12 520 (1976)

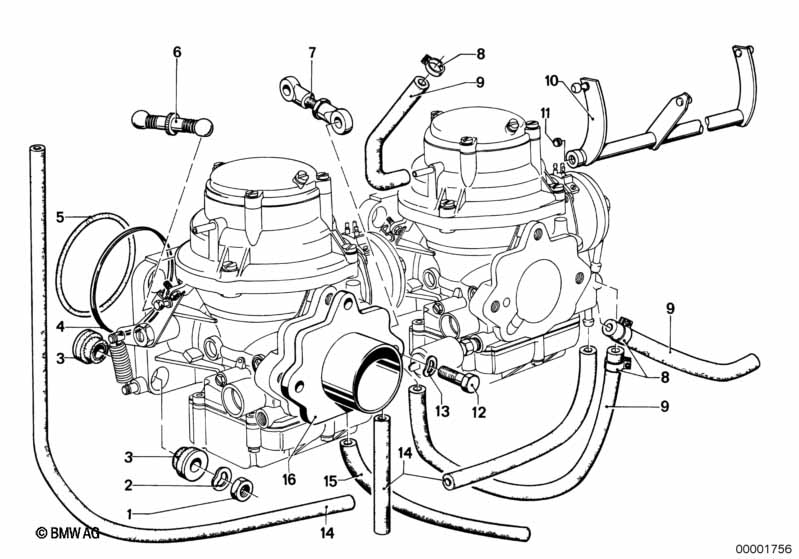

This Tuyau de depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ecrou à six pans | M6-8-ZNNIV SI | 8 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Rondelle élastique noire | B6-ZN | 8 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Plaque d'appui | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 02 | Rondelle elastique | B6-ZNS3 | 8 | 07119904496 | $1.78 | arrêté | Shop at ECS Tuning | |||
| 03 | Douille | X | 13111259287 | $4.18 | Shop at ECS Tuning | |||||
| 04 | Bague de centrage | 2 | 11611259293 | $3.98 | arrêté | Shop at ECS Tuning | ||||
| 05 | Joint torique | 2 | 13111259295 | $3.46 | Shop at ECS Tuning | |||||
| 06 | Tige de traction | 1 | 13211261796 | $53.29 | arrêté | Shop at ECS Tuning | ||||
| 07 | Tige de traction | 1 | 13211260223 | arrêté | Shop at ECS Tuning | |||||
| 08 | Collier | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Tuyau de carburant | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 10 | Arbre intermediaire | 1 | 13211257196 | $31.81 | arrêté | Shop at ECS Tuning | ||||
| 11 | Cuvette spherique | 2 | 13511256078 | $9.44 | Shop at ECS Tuning | |||||
| 12 | Vis six pans | M8X18-8.8-ZNS3 | 6 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Rondelle elastique | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Tuyau de carburant | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 15 | Tuyau de depression noir | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 16 | Tuyau d'aspiration | 2 | 13111259371 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
