Starter automatique for BMW 3 Series E30 316 (1985)

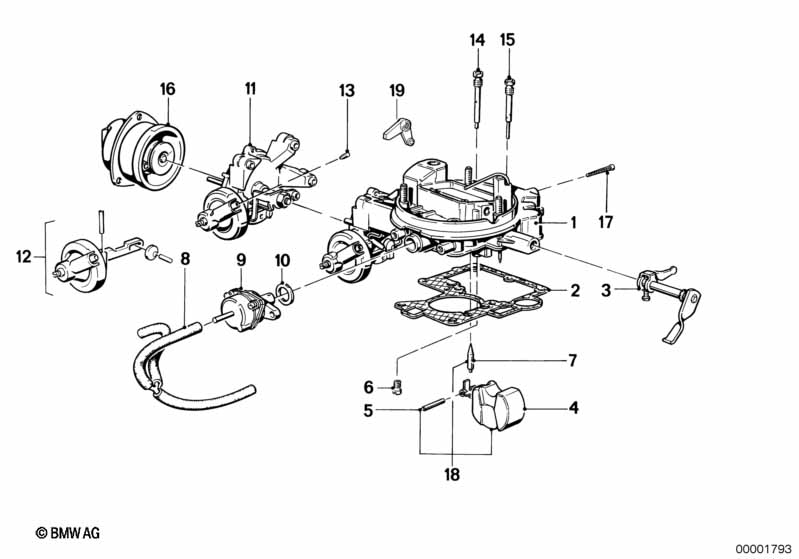

This Starter automatique technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec 316s mit 75 PS et Grèce version ou Yougoslave version |
V001A=Oui =Oui =Oui |
|||||||||
| 01 | Couvercle de carburateur | 1 | 13111278981 | arrêté | Shop at ECS Tuning | |||||
| 02 | Joint de couvercle | 1 | 13111278366 | $5.58 | Shop at ECS Tuning | |||||
| 03 | Jeu levier de pompe | 1 | 13111705892 | $30.13 | arrêté | Shop at ECS Tuning | ||||
| 04 | Jeu flotteur | 1 | 13111289910 | $50.44 | Shop at ECS Tuning | |||||
| 05 | Goupille | 1 | 13111276974 | $0.87 | arrêté | Shop at ECS Tuning | ||||
| 06 | Gicleur principal | X130 | 1 | 13111278358 | arrêté | Shop at ECS Tuning | ||||
| 07 | Pointeau de carburateur | 1 | 13111276972 | arrêté | Shop at ECS Tuning | |||||
| 07 | Jeu flotteur | 1 | 13111289910 | $50.44 | Shop at ECS Tuning | |||||
| 08 | Tuyau | 1 | 13111278372 | Shop at ECS Tuning | ||||||
| 09 | Clapet d'air | 1 | 13111278370 | $71.98 | Shop at ECS Tuning | |||||
| 10 | Joint torique | 1 | 13111278369 | arrêté | Shop at ECS Tuning | |||||
| 11 | Carter de starter | 1 | 13111285452 | $142.85 | arrêté | Shop at ECS Tuning | ||||
| 12 | Jeu capsule de depression | 1 | 13111705866 | $36.27 | Shop at ECS Tuning | |||||
| 13 | Buse | 25 | 1 | 13111705880 | arrêté | Shop at ECS Tuning | ||||
| 14 | Gicleur d'air auxiliaire | 40/150 | 1 | 13111286237 | arrêté | Shop at ECS Tuning | ||||
| 15 | Gicleur de ralenti | 47,5/130 | 1 | 13111286231 | arrêté | Shop at ECS Tuning | ||||
| 16 | Jeu couvercle pour demarreur | 1 | 13111278371 | $276.77 | arrêté | Shop at ECS Tuning | ||||
| 17 | Tamis | 1 | 13111286463 | $5.80 | Shop at ECS Tuning | |||||
| 18 | Jeu flotteur | 1 | 13111289910 | $50.44 | Shop at ECS Tuning | |||||
| 19 | Necessaire de reparation carburateur | 1 | 13119059166 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
