Pieces de carburateur for BMW 3 Series E30 316 (1985)

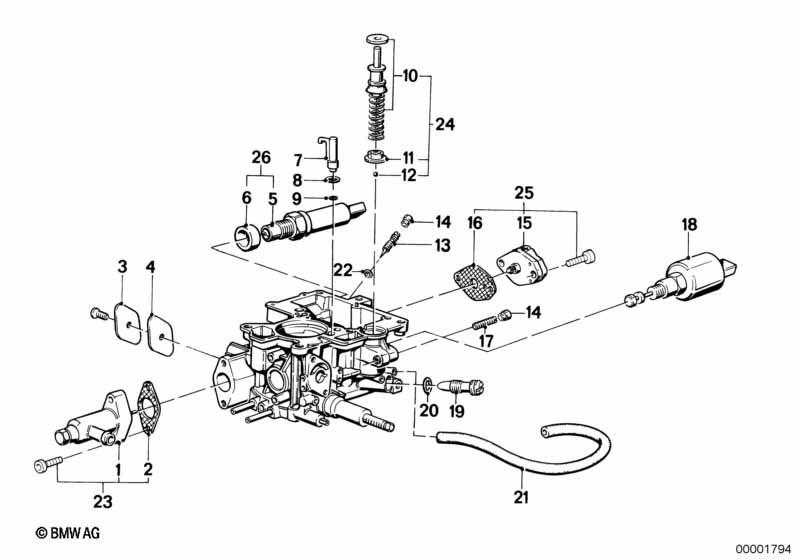

This Pieces de carburateur technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec 316s mit 75 PS et Grèce version ou Yougoslave version |
V001A=Oui =Oui =Oui |
|||||||||
| 02 | Joint | 1 | 13111276932 | $0.45 | Shop at ECS Tuning | |||||
| 03 | Couvercle | 1 | 13111278353 | arrêté | Shop at ECS Tuning | |||||
| 04 | Joint | 1 | 13111278352 | arrêté | Shop at ECS Tuning | |||||
| 05 | Sonde starter thermostatique | 1 | 13111705874 | $138.46 | Shop at ECS Tuning | |||||
| 06 | Anneau d'étanchéité | 1 | 13111276954 | $2.56 | arrêté | Shop at ECS Tuning | ||||
| 07 | Tuyau d'injection | 1 | 13111278363 | arrêté | Shop at ECS Tuning | |||||
| 08 | Joint torique | 1 | 13111278012 | $3.85 | arrêté | Shop at ECS Tuning | ||||
| 09 | Tamis | 1 | 13111278362 | arrêté | Shop at ECS Tuning | |||||
| 10 | Jeu de pistons de pompe | 1 | 13111705890 | Shop at ECS Tuning | ||||||
| 11 | Cache | 1 | 13111278360 | arrêté | Shop at ECS Tuning | |||||
| 12 | Bille | 1 | 13111278359 | arrêté | Shop at ECS Tuning | |||||
| 13 | Vis de reglage du melange | 1 | 13111278354 | $9.10 | arrêté | Shop at ECS Tuning | ||||
| 14 | Bouchon | BLAU | 2 | 13111265508 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Necessaire de soupape de richesse | 1 | 13111705891 | Shop at ECS Tuning | ||||||
| 16 | Joint | 1 | 13111278364 | Shop at ECS Tuning | ||||||
| 17 | Goupille filetee | 1 | 13111278984 | arrêté | Shop at ECS Tuning | |||||
| 18 | Soupape de circulation d'air | 1 | 13111287385 | $82.31 | arrêté | Shop at ECS Tuning | ||||
| 19 | Vis de reglage de circulation d'air | 1 | 13111278355 | Shop at ECS Tuning | ||||||
| 20 | Joint torique | 12,4X9,0X1,7 | 1 | 13111286431 | $7.80 | arrêté | Shop at ECS Tuning | |||
| 21 | Tuyau | 1 | 13111278373 | arrêté | Shop at ECS Tuning | |||||
| 22 | Vis de reglage du melange | 1 | 13111278354 | $9.10 | arrêté | Shop at ECS Tuning | ||||
| 23 | Clapet starter | 1 | 13111286537 | $119.41 | arrêté | Shop at ECS Tuning | ||||
| 24 | Jeu de pistons de pompe | 1 | 13111705890 | Shop at ECS Tuning | ||||||
| 25 | Necessaire de soupape de richesse | 1 | 13111705891 | Shop at ECS Tuning | ||||||
| 26 | Sonde starter thermostatique | 1 | 13111705874 | $138.46 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
