Regulation du melange for BMW 3 Series E30 316 (1985)

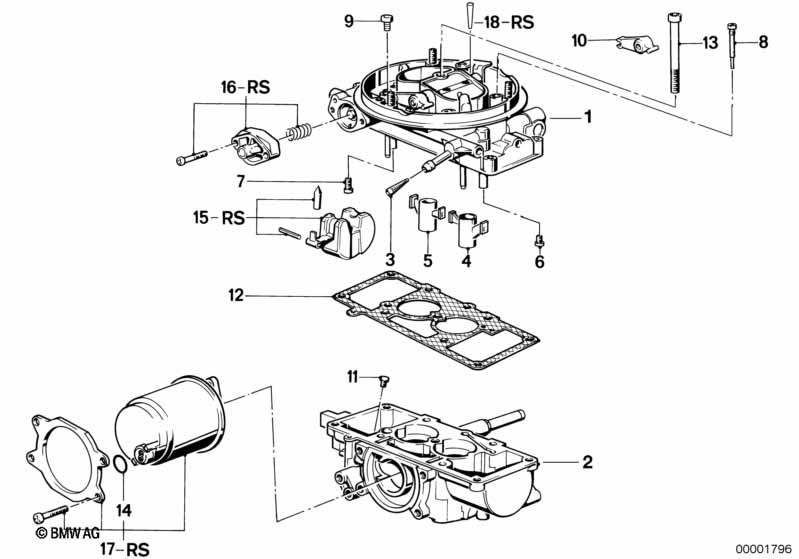

This Regulation du melange technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Couvercle de carburateur | 1 | 09/1983 | 13111715126 | $385.58 | Shop at ECS Tuning | ||||
| 02 | Chambre de flotteur | 1 | 09/1983 | 13111289906 | arrêté | Shop at ECS Tuning | ||||
| 03 | Tamis | 1 | 09/1983 | 13111286463 | $5.80 | Shop at ECS Tuning | ||||
| 04 | Gicleur pulverisateur | 1,5 | 1 | 09/1983 | 13111289913 | $24.77 | Shop at ECS Tuning | |||
| 05 | Gicleur pulverisateur | 0,7 | 1 | 09/1983 | 13111289914 | $22.45 | arrêté | Shop at ECS Tuning | ||
| 06 | Gicleur principal | 120 | 1 | 09/1983 | 13111276975 | $3.57 | arrêté | Shop at ECS Tuning | ||
| 07 | Gicleur principal | 110 | 1 | 09/1983 | 13111289912 | Shop at ECS Tuning | ||||
| 08 | Gicleur de ralenti | 47,5 | 1 | 09/1983 | 13111289917 | Shop at ECS Tuning | ||||
| 09 | Gicleur | 180 | 1 | 09/1983 | 13111276991 | $3.52 | arrêté | Shop at ECS Tuning | ||
| 10 | Levier | 1 | 09/1983 | 13112451614 | arrêté | Shop at ECS Tuning | ||||
| 11 | Gicleur d'air auxiliaire | 100 | 1 | 09/1983 | 13111268501 | arrêté | Shop at ECS Tuning | |||
| 12 | Joint de couvercle | 1 | 09/1983 | 13111289907 | $3.00 | Shop at ECS Tuning | ||||
| 13 | Vis cylindrique | 1 | 09/1983 | 13111289916 | arrêté | Shop at ECS Tuning | ||||
| 14 | Anneau d'étanchéité | 12,5X2 | 1 | 09/1983 | 12141286625 | $1.29 | Shop at ECS Tuning | |||
| 15 | Jeu flotteur | 2 | 09/1983 | 13111289910 | $50.44 | Shop at ECS Tuning | ||||
| 16 | Soupape | 1 | 09/1983 | 13111289911 | $72.02 | arrêté | Shop at ECS Tuning | |||
| 17 | Commande electrique papillon secondaire | 1 | 09/1983 | 13111289931 | $363.82 | Shop at ECS Tuning | ||||
| 18 | Gicleur de ralenti | 1 | 09/1983 | 13119061748 | $76.37 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
