Boîtier du papillon for BMW 3 Series E30 316 (1985)

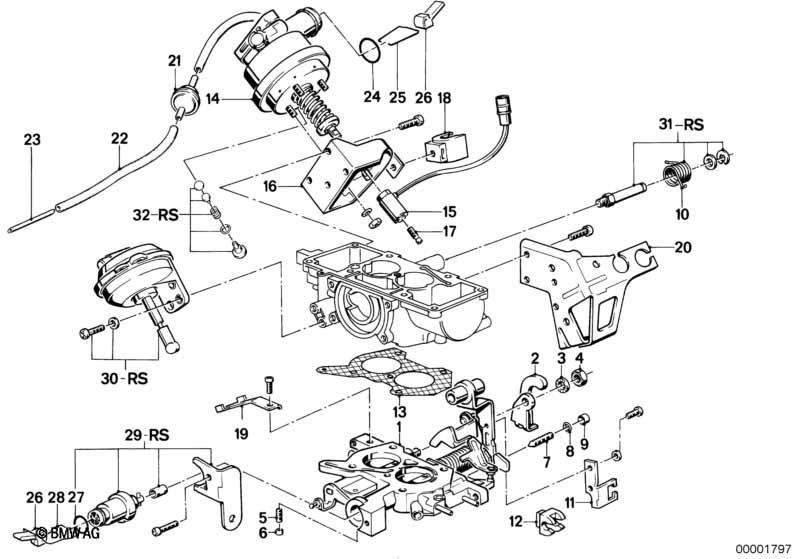

This Boîtier du papillon technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boîtier du papillon | 2BE | 1 | 09/1983 | 13111289900 | arrêté | Shop at ECS Tuning | |||
| 02 | Levier | 1 | 09/1983 | 13111289901 | $10.77 | Shop at ECS Tuning | ||||
| 03 | Disque de securite | 8,4X13 | 1 | 09/1983 | 13541267663 | arrêté | Shop at ECS Tuning | |||
| 04 | Ecrou à six pans | 1 | 09/1983 | 13111276930 | $1.98 | arrêté | Shop at ECS Tuning | |||
| 05 | Goupille filetee | 1 | 09/1983 | 13111265929 | $2.15 | arrêté | Shop at ECS Tuning | |||
| 06 | Cache | 1 | 09/1983 | 13111259605 | arrêté | Shop at ECS Tuning | ||||
| 07 | Vis de reglage du melange | 1 | 09/1983 | 13111289903 | $11.61 | Shop at ECS Tuning | ||||
| 08 | Vis de reglage du melange | 1 | 09/1983 | 13111278354 | $9.10 | arrêté | Shop at ECS Tuning | |||
| 08 | Vis de reglage du melange | 1 | 09/1983 | 13111289903 | $11.61 | Shop at ECS Tuning | ||||
| 09 | Bouchon | BLAU | 1 | 09/1983 | 13111265508 | $0.18 | Shop at ECS Tuning | |||
| 10 | Ressort de torsion | 1 | 09/1983 | 13111289934 | arrêté | Shop at ECS Tuning | ||||
| 11 | Levier de commande | 1 | 09/1983 | 65711374707 | arrêté | Shop at ECS Tuning | ||||
| 12 | Raccord | 1 | 09/1983 | 13541288013 | $0.53 | arrêté | Shop at ECS Tuning | |||
| 13 | Joint | 1 | 09/1983 | 13111289905 | $4.30 | Shop at ECS Tuning | ||||
| 14 | Moteur de réglage | 1 | 09/1983 | 13111289920 | $485.46 | Shop at ECS Tuning | ||||
| 15 | Interrupteur de ralenti | 1 | 09/1983 | 13111289921 | $92.62 | Shop at ECS Tuning | ||||
| 16 | Support | 1 | 09/1983 | 13111289919 | arrêté | Shop at ECS Tuning | ||||
| 17 | Goupille filetee | 1 | 09/1983 | 13111289902 | arrêté | Shop at ECS Tuning | ||||
| 18 | Support | 1 | 09/1983 | 13111289928 | $3.02 | Shop at ECS Tuning | ||||
| 19 | Support | 1 | 09/1983 | 13111289929 | arrêté | Shop at ECS Tuning | ||||
| 21 | Filtre à air | 1 | 09/1983 | 13111288022 | Shop at ECS Tuning | |||||
| 22 | Tuyau de depression blanc | 3,3X1,8 | X | 09/1983 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| 23 | Raccord | 1 | 09/1983 | 13111289068 | arrêté | Shop at ECS Tuning | ||||
| 24 | Anneau d'étanchéité | 23,6X2 | 1 | 09/1983 | 12141286626 | arrêté | Shop at ECS Tuning | |||
| 25 | Etrier | 1 | 09/1983 | 13111705803 | arrêté | Shop at ECS Tuning | ||||
| 26 | Tendeur | 1 | 09/1983 | 13111705804 | arrêté | Shop at ECS Tuning | ||||
| 27 | Anneau d'étanchéité | 16X2 | 1 | 09/1983 | 13111705798 | arrêté | Shop at ECS Tuning | |||
| 28 | Etrier | 2 | 09/1983 | 13111705802 | arrêté | Shop at ECS Tuning | ||||
| 29 | Jeu de reparation potentiometer | 1 | 09/1983 | 13111717873 | $138.46 | Shop at ECS Tuning | ||||
| 30 | Boîte de commande | 1 | 09/1983 | 13111289930 | $61.38 | arrêté | Shop at ECS Tuning | |||
| 31 | Boulon de palier | 1 | 09/1983 | 13111289918 | Shop at ECS Tuning | |||||
| 32 | Valve antiretour | 1 | 09/1983 | 13119061581 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
