Reglage du ralenti for BMW 3 Series E30 316 (1985)

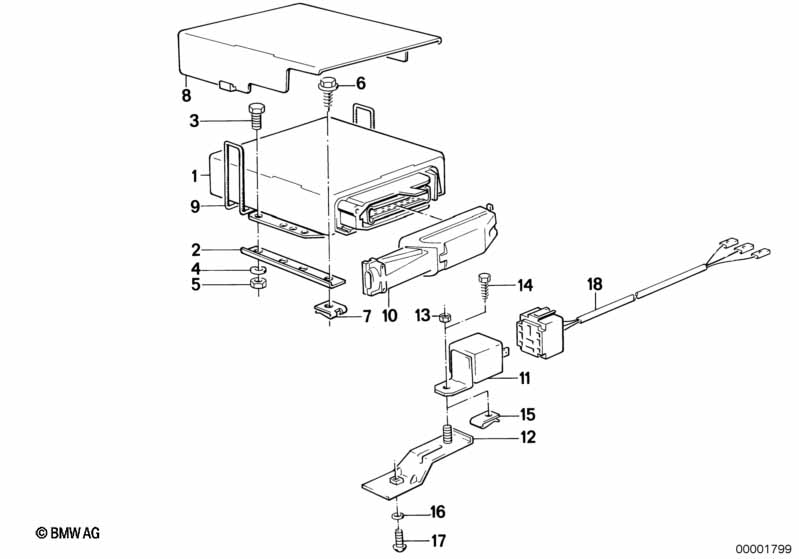

This Reglage du ralenti technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 11 | Relais | 1 | 09/1983 | 12631706432 | $32.36 | arrêté | Shop at ECS Tuning | |||
| 12 | Support | 1 | 09/1983 | 13411286642 | $2.97 | arrêté | Shop at ECS Tuning | |||
| 13 | Ecrou à six pans | M6-8-ZNNIV SI | 1 | 09/1983 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 14 | Vis a tole tête bombee | ST6,3X13 | 1 | 09/1983 | 07119906791 | $0.25 | arrêté | Shop at ECS Tuning | ||
| 15 | Ecrou tôlé | ST6,3-1-ZNS3 | 1 | 09/1983 | 07129904231 | Shop at ECS Tuning | ||||
| 16 | Plaque d'appui | A6,4-ZNNIV SI | 1 | 09/1983 | 07119904202 | Shop at ECS Tuning | ||||
| 17 | Vis à tête bombée | M6X10 | 1 | 09/1983 | 07119907646 | $0.40 | Shop at ECS Tuning | |||
| 18 | Faisceau augmentation gicleur de ralenti | 1 | 11/1984 | 12511707382 | $15.85 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
