Commande d'allumage a depression for BMW 3 Series E30 316 (1985)

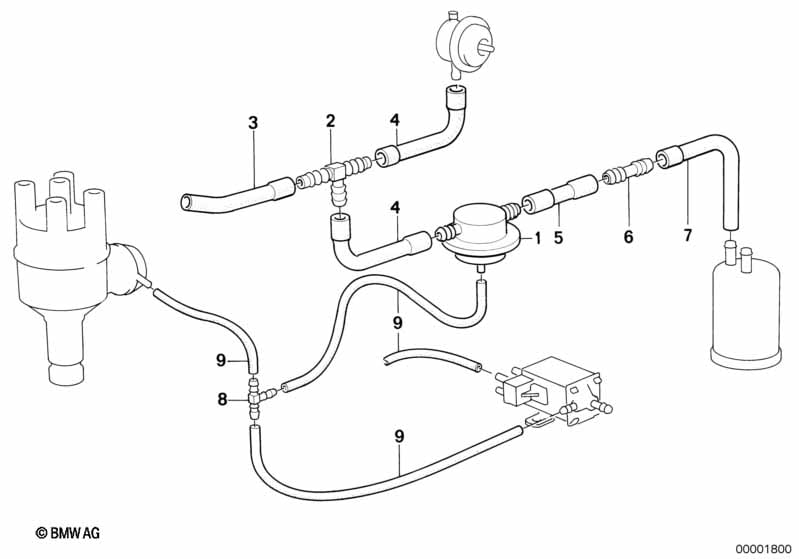

This Commande d'allumage a depression technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Filtre à charbon actif | |||||||||
| Pour véhicules avec Version Arabie Saoudite |
=Oui |
|||||||||
| 01 | Clapet d'air | 1 | 13111707608 | arrêté | Shop at ECS Tuning | |||||
| 02 | Pièce de distribution | 1 | 13111707607 | arrêté | Shop at ECS Tuning | |||||
| 03 | Tuyau | 1 | 13111707602 | arrêté | Shop at ECS Tuning | |||||
| 04 | Tuyau | 2 | 13111707601 | arrêté | Shop at ECS Tuning | |||||
| 05 | Tuyau | 1 | 13111709093 | arrêté | Shop at ECS Tuning | |||||
| 06 | Raccord reducteur | 12/8 | 1 | 16121153403 | Shop at ECS Tuning | |||||
| 07 | Tuyau de carburant | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 08 | Pièce-T | 1 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 09 | Tuyau de depression noir | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
