Soupape d'air additionnel for BMW 7 Series E23 733i

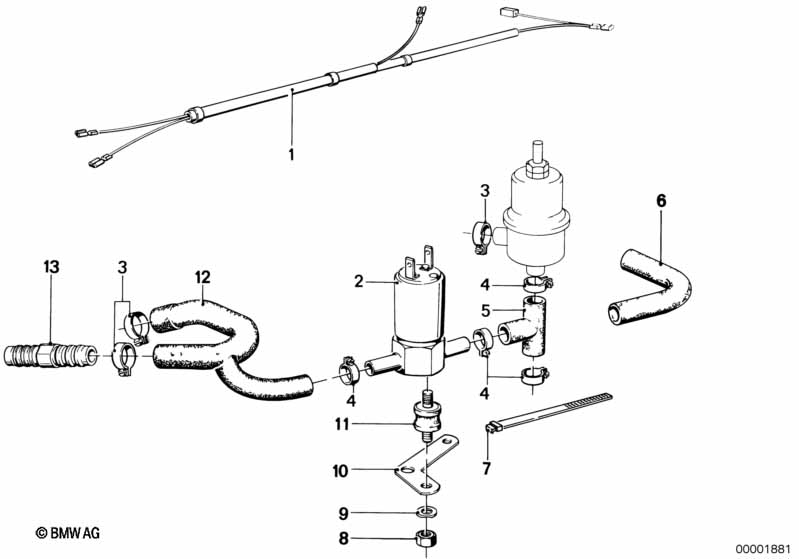

This Soupape d'air additionnel technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jeu de câbles | 1 | 09/1982 | 61111268354 | $17.30 | arrêté | Shop at ECS Tuning | |||
| 02 | Soupape d'air additionnel | 1 | 09/1982 | 13641276163 | $87.76 | Shop at ECS Tuning | ||||
| 03 | Collier | L18-24 | 3 | 09/1982 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 04 | Collier | L15-19 | 5 | 09/1982 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 05 | Tuyau | 1 | 09/1982 | 11741266884 | $1.83 | Shop at ECS Tuning | ||||
| 06 | Tuyau | 1 | 09/1979 | 09/1982 | 11611271571 | $9.02 | arrêté | Shop at ECS Tuning | ||
| 06 | Tuyau | 1 | 09/1979 | 09/1982 | 11611271571 | $9.02 | arrêté | Shop at ECS Tuning | ||
| 07 | Attache-câble | L=292MM/B=4,8MM | 4 | 09/1982 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 08 | Ecrou à six pans | M6 | 1 | 09/1982 | 23112322368 | $0.38 | arrêté | Shop at ECS Tuning | ||
| 09 | Rondelle élastique noire | B6-ZN | 1 | 09/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 09 | Plaque d'appui | 5.3-140 HV-ZNS | 1 | 09/1982 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 10 | Support | 1 | 09/1979 | 11611266872 | $2.24 | arrêté | Shop at ECS Tuning | |||
| 10 | Support | 1 | 09/1979 | 09/1982 | 11611271598 | arrêté | Shop at ECS Tuning | |||
| 10 | Support | 1 | 09/1979 | 09/1982 | 11611271598 | arrêté | Shop at ECS Tuning | |||
| 11 | Amortisseur de vibrations | 1 | 09/1982 | 64218042132 | $8.10 | Shop at ECS Tuning | ||||
| 12 | Tuyau | 1 | 09/1979 | 11611266885 | $29.10 | Shop at ECS Tuning | ||||
| 12 | Tuyau | 1 | 09/1979 | 09/1982 | 11611271604 | arrêté | Shop at ECS Tuning | |||
| 12 | Tuyau | 1 | 09/1979 | 09/1982 | 11611271604 | arrêté | Shop at ECS Tuning | |||
| 13 | Tuyau de raccordement | 1 | 09/1982 | 11611266957 | $3.03 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
