Débitmètre d'air for BMW 6 Series E24 M6 (1988)

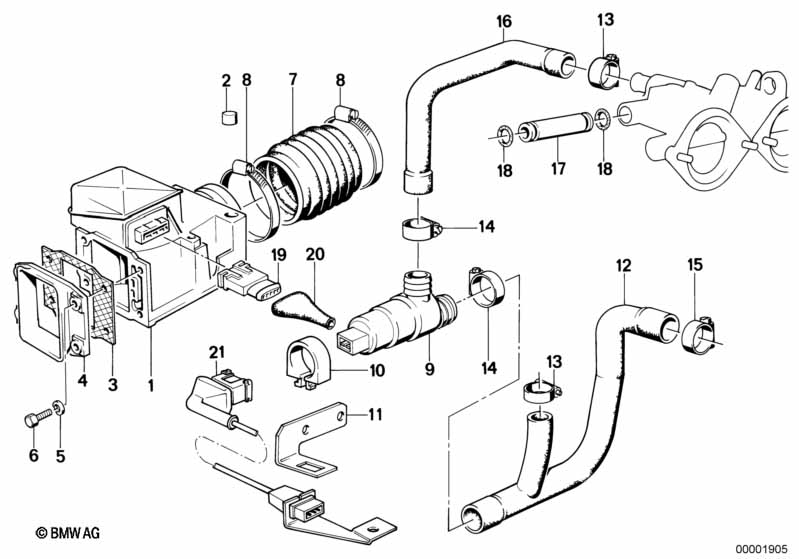

This Débitmètre d'air technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | CATALYSEUR | |||||||||
| 01 | Débitmètre d'air | 1 | 13621307019 | $1088.17 | Shop at ECS Tuning | |||||
| 01 | Air-flow sensor | 1 | 13621466351 | $518.00 | Shop at ECS Tuning | |||||
| 02 | Capuchon | 1 | 13621363874 | $7.12 | arrêté | Shop at ECS Tuning | ||||
| 03 | Joint sans amiante | 1 | 13719067449 | $5.00 | Shop at ECS Tuning | |||||
| 04 | Bride de raccordement | 1 | 13711306719 | $8.03 | arrêté | Shop at ECS Tuning | ||||
| 05 | Rondelle élastique noire | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Plaque d'appui | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Rondelle elastique | B6-ZNS3 | 4 | 07119904496 | $1.78 | arrêté | Shop at ECS Tuning | |||
| 06 | Vis Isa | M6X20-8.8-ZNNIV | 4 | 07129901130 | $0.38 | Shop at ECS Tuning | ||||

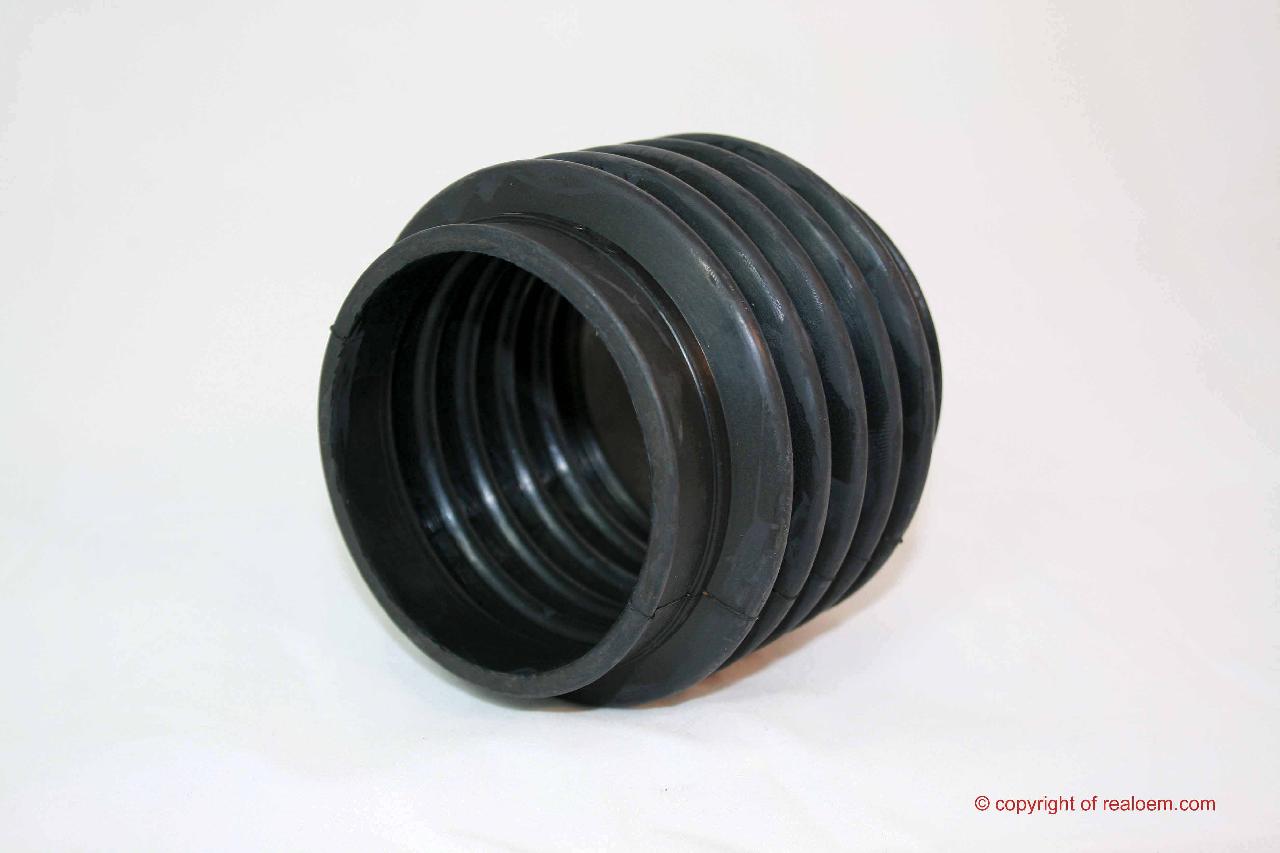

| 07 | Soufflet | 1 | 11611306724 | $21.19 | Shop at ECS Tuning | |||||
| 08 | Collier | L77-84 | 2 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 09 | Soupape reglage du ralenti raccordem.L | 1 | 13411286065 | $213.68 | arrêté, SI 130184338 | Shop at ECS Tuning | ||||
| 10 | Silentbloc | 1 | 13411705564 | $2.40 | +vieille matière | Shop at ECS Tuning | ||||
| 11 | Support reglage du ralenti | 1 | 13411310697 | $3.65 | Shop at ECS Tuning | |||||
| 12 | Tuyau | 1 | 13411310699 | $59.63 | Shop at ECS Tuning | |||||
| 13 | Collier | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Collier | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 15 | Collier | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 16 | Tuyau | 1 | 13411310698 | $49.92 | Shop at ECS Tuning | |||||
| 17 | Tuyau de raccordement | 1 | 13541307349 | $12.75 | arrêté | Shop at ECS Tuning | ||||
| 18 | Joint torique | 2 | 13541307380 | $2.48 | arrêté | Shop at ECS Tuning | ||||
| 18 | Joint torique | 10X2,5 | 2 | 07119907330 | Shop at ECS Tuning | |||||
| 19 | Boîtier de connecteur | 1 | 12521706097 | $2.03 | arrêté | Shop at ECS Tuning | ||||
| 20 | Capuchon de protection | L=27,0MM | 1 | 61131270973 | $6.33 | Shop at ECS Tuning | ||||
| 21 | Câble-adaptateur | 1 | 12511311604 | $39.80 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- SI = Service-Information (Information Service)
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
