Alimentation en carburant/pompe/filtre for BMW 3 Series E30 316 (1985)

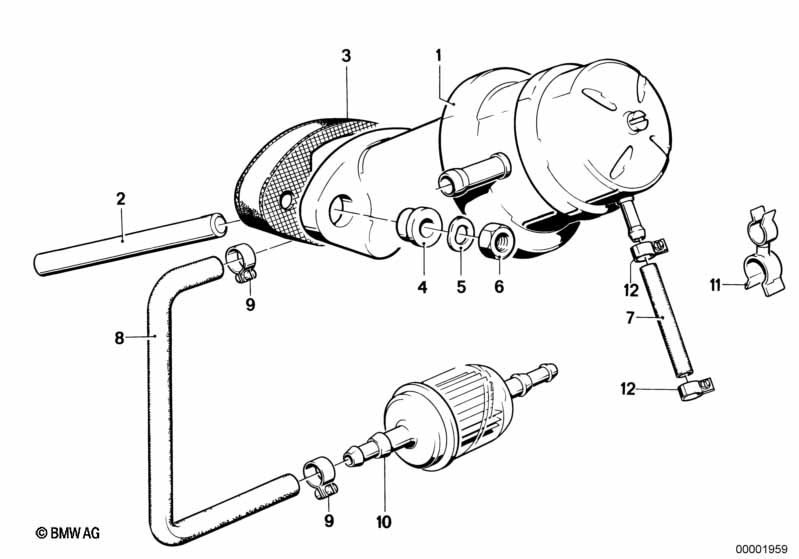

This Alimentation en carburant/pompe/filtre technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompe a carburant | 1 | 09/1983 | 13311287333 | $138.64 | Shop at ECS Tuning | ||||
| Pour véhicules avec 316s mit 75 PS et Grèce version ou Yougoslave version |
V001A=Oui =Oui =Oui |
|||||||||
| 01 | Pompe a carburant | 1 | 13311276392 | $138.64 | arrêté | Shop at ECS Tuning | ||||
| 02 | Poussoir de pompe | 1 | 13311255727 | $5.85 | Shop at ECS Tuning | |||||
| 03 | Bride isolante | AF | 1 | 11111721614 | $6.77 | arrêté | Shop at ECS Tuning | |||
| 04 | Douille isolante | 2 | 13310075752 | $1.57 | Shop at ECS Tuning | |||||
| 05 | Rondelle elastique | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Ecrou à six pans avec bride | M8 | 2 | 11611713432 | $0.43 | arrêté | Shop at ECS Tuning | |||
| 07 | Tuyau de carburant | 6X11MM | X | 09/1983 | 13311272750 | $11.62 | Shop at ECS Tuning | |||
| Pour véhicules avec 316s mit 75 PS et Grèce version ou Yougoslave version |
V001A=Oui =Oui =Oui |
|||||||||
| 07 | Tuyau de carburant | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 08 | Tuyau de carburant | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 09 | Collier | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Filtre à carburant | 6+8 MM | 1 | 13321277497 | $2.78 | Shop at ECS Tuning | ||||
| 11 | Support de tuyau | 1 | 13311274792 | $1.73 | Shop at ECS Tuning | |||||
| 12 | Collier | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
