Couvercle de carburateur/piston/flotteur for BMW 2500-3.3Li 2800 (1971)

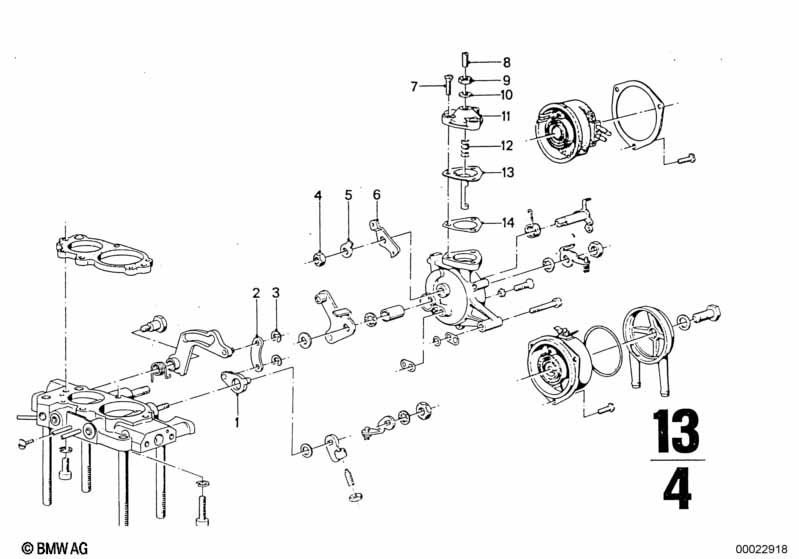

This Couvercle de carburateur/piston/flotteur technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Levier | 2 | 13111253006 | arrêté | Shop at ECS Tuning | |||||
| 02 | Levier | 2 | 13111253007 | arrêté | Shop at ECS Tuning | |||||
| 03 | Jeu de 10 rondelles de securite | 4,0 | 4 | 07509064292 | arrêté | Shop at ECS Tuning | ||||
| 04 | Ecrou | 2 | 13110639211 | arrêté | Shop at ECS Tuning | |||||
| 05 | Plaque de securite | 2 | 13111252693 | arrêté | Shop at ECS Tuning | |||||
| 06 | Levier de transmission | 2 | 13111253024 | arrêté | Shop at ECS Tuning | |||||
| 07 | Vis a tete fraisee et bombee | 6 | 13111257854 | $2.34 | arrêté | Shop at ECS Tuning | ||||
| 08 | Goupille filetee | 2 | 13110639342 | arrêté | Shop at ECS Tuning | |||||
| 09 | Ecrou à six pans | 2 | 13111252682 | arrêté | Shop at ECS Tuning | |||||
| 10 | Anneau d'étanchéité | 2 | 13111252681 | arrêté | Shop at ECS Tuning | |||||
| 11 | Couvercle | 2 | 13111257853 | arrêté | Shop at ECS Tuning | |||||
| 12 | Ressort de pression | 2 | 08/1968 | 09/1973 | 13111253021 | arrêté | Shop at ECS Tuning | |||
| 12 | Jeu membrane | 2 | 07/1969 | 02/1977 | 13111709141 | $51.99 | Shop at ECS Tuning | |||
| 13 | Membrane | 2 | 08/1968 | 09/1973 | 13111253924 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Version Japon et Version Suède |
L807A=Oui =Oui |
|||||||||
| 13 | Membrane | 2 | 07/1969 | 02/1977 | 13111257195 | $46.79 | Shop at ECS Tuning | |||
| 14 | Joint | 4 | 13111257194 | $1.68 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
