Carter de volet de depart for BMW 2500-3.3Li 3.0Si

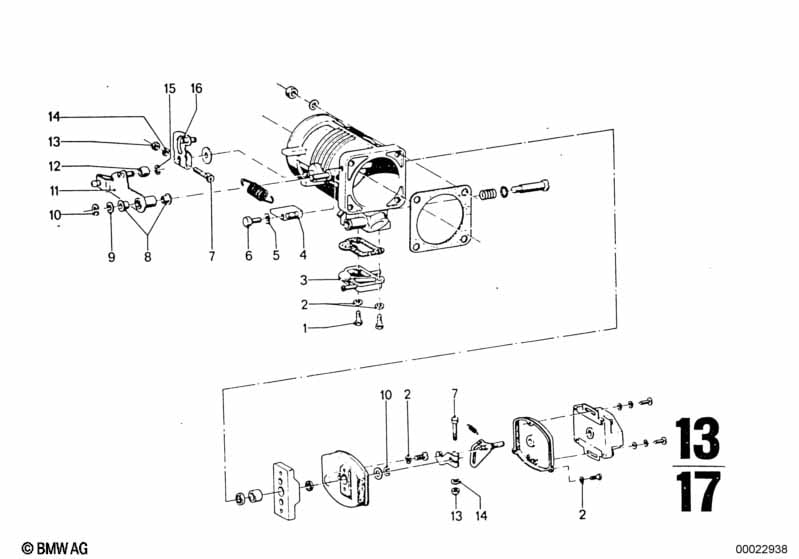

This Carter de volet de depart technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vis six pans | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 02 | Rondelle elastique | B5 | 6 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Couvercle | 1 | 13541257133 | $44.53 | arrêté | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 09/1971 | 02/1977 | 13541257952 | arrêté | Shop at ECS Tuning | |||
| 04 | Support | 1 | 09/1973 | 02/1977 | 13541262202 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Ressort de traction | X | 09/1973 | 02/1977 | 13541261710 | $1.50 | arrêté | Shop at ECS Tuning | ||
| -- | Levier de papillon | X | 09/1973 | 02/1977 | 13541262200 | arrêté | Shop at ECS Tuning | |||
| 05 | Rondelle elastique | B6 | 1 | 07119932072 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 06 | Vis six pans | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Vis de serrage | 2 | 13541255749 | arrêté | Shop at ECS Tuning | |||||
| 08 | Douille | 2 | 13111276960 | arrêté | Shop at ECS Tuning | |||||
| 09 | Rondelle elastique | 1 | 13110542303 | $1.10 | arrêté | Shop at ECS Tuning | ||||
| 10 | Disque de securite | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 11 | Levier de commande | 1 | 09/1971 | 02/1977 | 13541256317 | arrêté | Shop at ECS Tuning | |||
| 11 | Levier de commande | 1 | 09/1973 | 02/1977 | 13541260555 | arrêté | Shop at ECS Tuning | |||
| 12 | Rouleau | 1 | 13541255757 | arrêté | Shop at ECS Tuning | |||||
| 13 | Ecrou à six pans | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Rondelle | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 14 | Plaque d'appui | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Disque de securite | 4,0 | 1 | 07119932822 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Levier de papillon | 1 | 09/1971 | 02/1977 | 13541257950 | arrêté | Shop at ECS Tuning | |||
| 16 | Levier de papillon | 1 | 09/1973 | 02/1977 | 13541262200 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Ressort de traction | 2 | 09/1973 | 02/1977 | 13541261710 | $1.50 | arrêté | Shop at ECS Tuning | ||
| -- | Support | 1 | 09/1973 | 02/1977 | 13541262202 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
