Faisceau for BMW 2500-3.3Li 3.0Si
This Faisceau technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 1 | 61131356137 | arrêté | Shop at ECS Tuning | |||||
| 02 | Poignee | 1 | 61131353435 | arrêté | Shop at ECS Tuning | |||||
| 03 | Rallonge | 3 | 13651353339 | $3.28 | arrêté | Shop at ECS Tuning | ||||
| 04 | Collier | D=16/6,4 | 1 | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 05 | Collier de tuyau | 2 | 12121350635 | $1.61 | arrêté | Shop at ECS Tuning | ||||
| 06 | Faisceau pour systeme d'injection | 1 | 61121356010 | $1344.78 | arrêté | Shop at ECS Tuning | ||||
| 07 | Capuchon de protection | 8 | 61131352793 | $11.80 | arrêté | Shop at ECS Tuning | ||||
| 08 | Boîtier de connexion femelle | 1 POL. | 9 | 61131352607 | $3.36 | Shop at ECS Tuning | ||||
| 09 | Isolant de cosse plate | 0,3-0,6MM² | 25 | 61131351192 | $1.05 | arrêté | Shop at ECS Tuning | |||
| 10 | Capuchon de protection | 2 | 13651353478 | arrêté | Shop at ECS Tuning | |||||
| 11 | Boîtier de connecteur | 2 | 13651353481 | arrêté | Shop at ECS Tuning | |||||
| 12 | Boîtier de connecteur | 1 | 61131354373 | arrêté | Shop at ECS Tuning | |||||
| 13 | Isolant de cosse plate | B=8/L=20 | 9 | 61138608021 | $0.55 | arrêté | Shop at ECS Tuning | |||
| 14 | Boîtier de connecteur | 1 | 13651355044 | arrêté | Shop at ECS Tuning | |||||
| 15 | Isolant de cosse plate | B=7,5/L=19,2MM | 2 | 61138061769 | $0.48 | arrêté | Shop at ECS Tuning | |||
| 16 | Capuchon de protection | 2 | 61131354696 | Shop at ECS Tuning | ||||||
| 17 | Boîtier de connecteur | 1 | 13651353482 | arrêté | Shop at ECS Tuning | |||||
| 18 | Capuchon de protection | 1 | 13651353479 | arrêté | Shop at ECS Tuning | |||||
| 19 | Isolant de cosse plate | 1,0-2,5MM² | 2 | 61131352810 | $1.24 | arrêté | Shop at ECS Tuning | |||
| 20 | Boîtier de connecteur | 1 | 61131353828 | arrêté | Shop at ECS Tuning | |||||
| 21 | Boîtier de connecteur | 1 | 61131353436 | arrêté | Shop at ECS Tuning | |||||
| 22 | Fiche de contact | B=5,3/L=19 | 24 | 61131353463 | $0.79 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Faisceau?

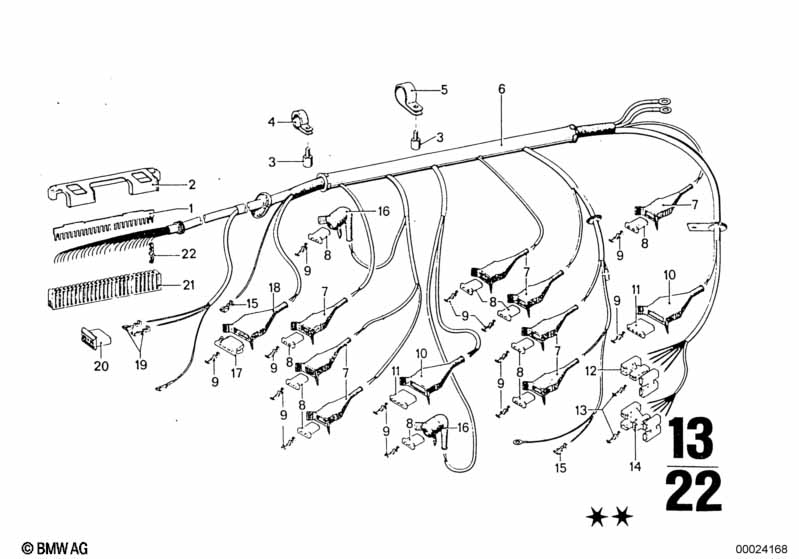

- This technical diagram illustrates the Faisceau within the Formation du mélange group for the 2500-3.3Li 3.0Si. It provides a detailed exploded view of the components, identifying key parts such as the Support (Part #61131356137).
