Filtre à air for BMW 2500-3.3Li 3.0Si

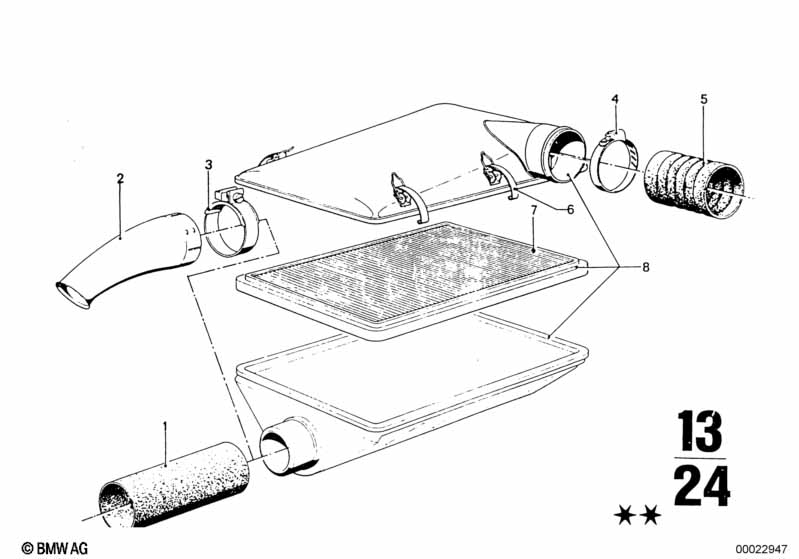

This Filtre à air technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tuyau | 1 | 13731255272 | arrêté | Shop at ECS Tuning | |||||
| 02 | Raccord tuyau d'admission d'air | 1 | 13711259493 | arrêté | Shop at ECS Tuning | |||||
| 03 | Collier | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 04 | Collier | L83-90 | 2 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Soufflet | 1 | 13721255108 | $17.74 | Shop at ECS Tuning | |||||
| 06 | Etrier en fil | 7 | 13711259758 | $1.52 | Shop at ECS Tuning | |||||
| 07 | Elément filtre à air | 1 | 13721256390 | arrêté | Shop at ECS Tuning | |||||
| 08 | Silencieux d'admission | 1 | 13721256550 | arrêté | Shop at ECS Tuning | |||||
| Pour véhicules avec Version Japon |
L807A=Oui |
|||||||||
| 08 | Silencieux d'admission | 1 | 13711259511 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
