Carter super.filtre a air/debitmetre air for BMW 2500-3.3Li 3.0Si

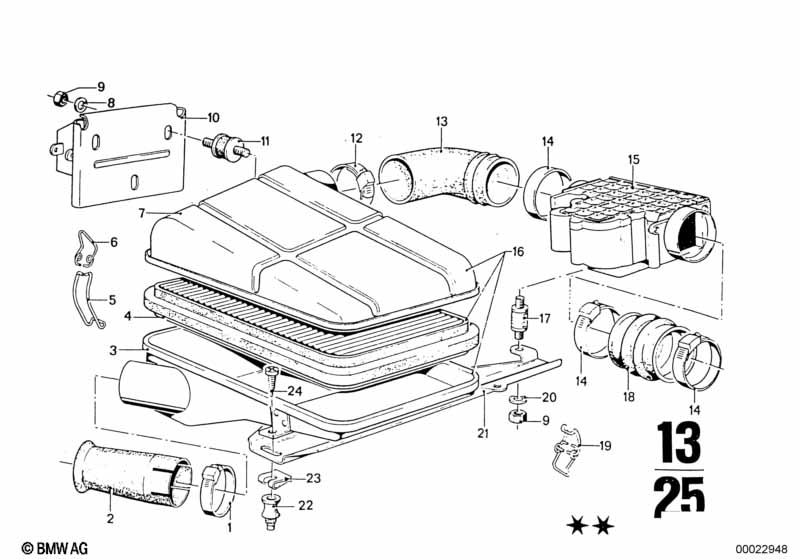

This Carter super.filtre a air/debitmetre air technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Collier | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 02 | Tubulure d'aspiration | 1 | 13711261217 | $18.21 | arrêté | Shop at ECS Tuning | ||||
| 03 | Carter inferieur | 1 | 13711261306 | arrêté | Shop at ECS Tuning | |||||
| 04 | Elément filtre à air | 1 | 13721278138 | Shop at ECS Tuning | ||||||
| 04 | Elément filtre à air | 1 | 13721278138 | Shop at ECS Tuning | ||||||
| 05 | Etrier | 1 | 13711259760 | arrêté | Shop at ECS Tuning | |||||
| 06 | Levier | 1 | 13711259759 | arrêté | Shop at ECS Tuning | |||||
| 07 | Carter superieur | 1 | 13711261119 | arrêté | Shop at ECS Tuning | |||||
| 08 | Plaque d'appui | A6,4-200HV-ZNS3 | 3 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Ecrou à six pans | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Console | 1 | 13711261409 | arrêté | Shop at ECS Tuning | |||||
| 11 | Silentbloc | 3 | 13711259818 | $6.98 | Shop at ECS Tuning | |||||
| 12 | Collier | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 13 | Tuyau | 1 | 13711261370 | $29.23 | Shop at ECS Tuning | |||||
| 14 | Collier | L83-90 | 3 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 15 | Débitmètre d'air | 1 | 09/1973 | 02/1977 | 13621359641 | $731.08 | Shop at ECS Tuning | |||
| 16 | Silencieux d'admission | 1 | 13711260633 | arrêté | Shop at ECS Tuning | |||||
| Pour véhicules avec Version Japon ou Version Australie |
L807A=Oui L810A=Oui |
|||||||||
| 16 | Silencieux d'admission | 1 | 09/1973 | 02/1977 | 13711264539 | arrêté | Shop at ECS Tuning | |||
| 17 | Silentbloc | 3 | 13621359216 | $10.80 | arrêté | Shop at ECS Tuning | ||||
| 18 | Soufflet | 1 | 13711260372 | $15.08 | Shop at ECS Tuning | |||||
| 19 | Etrier en fil | 4 | 13711259758 | $1.52 | Shop at ECS Tuning | |||||
| 20 | Rondelle elastique | B6 | 3 | 07119932072 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 21 | Support | 1 | 13711260902 | arrêté | Shop at ECS Tuning | |||||
| 22 | Tampon | 2 | 13711263819 | $2.08 | Shop at ECS Tuning | |||||
| 23 | Ecrou tôlé | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 24 | Jeu vis a tole a six pans 20 | ST6,3X16-Z2 | 2 | 07509064351 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
