Filtre à carburant/régulateur pression for BMW 7 Series E38 740iL

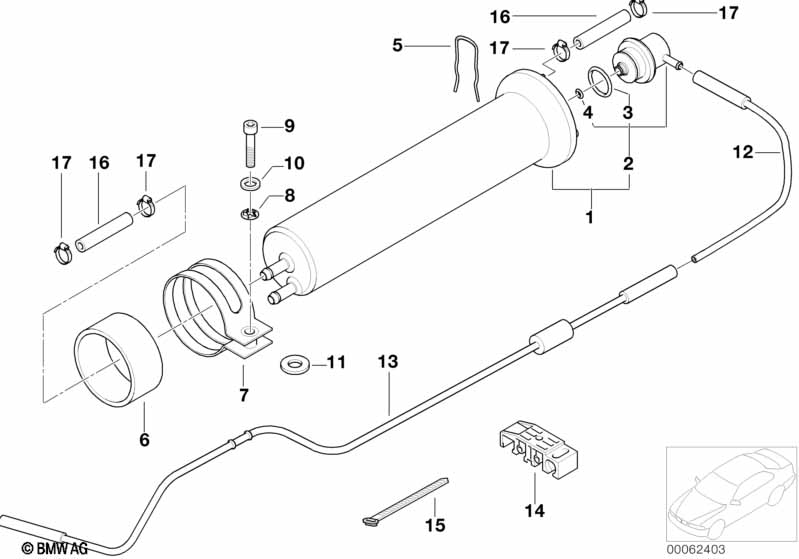

This Filtre à carburant/régulateur pression technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtre à carburant + régulateur pression | 1 | 09/1998 | 13321709535 | $96.84 | Shop at ECS Tuning | ||||
| 02 | Regulateur de pression | 1 | 09/1998 | 13531436110 | $75.10 | Shop at ECS Tuning | ||||
| 03 | Joint torique | 20X2,5 | 1 | 09/1998 | 13531720251 | $4.38 | Shop at ECS Tuning | |||
| 04 | Joint torique | 5X1,5 | 1 | 09/1998 | 13531720252 | $3.75 | Shop at ECS Tuning | |||
| 05 | Ressort de serrage | 1 | 09/1998 | 07/1999 | 13531341694 | $4.84 | Shop at ECS Tuning | |||
| 05 | Etrier de serrage | 1 | 09/1998 | 13321440346 | $1.82 | Shop at ECS Tuning | ||||
| 06 | Rondelle ressort | D=55MM | 1 | 09/1998 | 13321734056 | $2.73 | Shop at ECS Tuning | |||
| 07 | Support de filtre à carburant | D=55MM | 1 | 09/1998 | 13321702583 | $16.33 | Shop at ECS Tuning | |||
| 08 | Disque de securite | M6 | 1 | 09/1998 | 13321440349 | $0.80 | Shop at ECS Tuning | |||
| 09 | Vis Isa | M6X30-8.8-ZNNIV | 1 | 07/1999 | 07129905386 | $0.86 | Shop at ECS Tuning | |||
| 09 | Vis | 1 | 09/1998 | 13321440348 | $2.08 | arrêté | Shop at ECS Tuning | |||
| 10 | Plaque d'appui | A6,4-ZNNIV SI | 1 | 09/1998 | 07/1999 | 07119904202 | Shop at ECS Tuning | |||
| 10 | Vis | 1 | 09/1998 | 13321440348 | $2.08 | arrêté | Shop at ECS Tuning | |||
| 11 | Rondelle entretoise | 1 | 09/1998 | 13321440347 | $2.47 | arrêté | Shop at ECS Tuning | |||
| 12 | Conduite de depression | 1 | 09/1998 | 13321437012 | $16.70 | Shop at ECS Tuning | ||||
| 13 | Conduite de depression | 1 | 09/1998 | 13321437692 | $16.70 | Shop at ECS Tuning | ||||
| 14 | Collier | 2 | 09/1998 | 16121177005 | $0.93 | Shop at ECS Tuning | ||||
| 15 | Attache-câble | L=100MM/B=2,5MM | 2 | 09/1998 | 61131372391 | $0.08 | Shop at ECS Tuning | |||
| 16 | Tuyau de carburant | 8X13MMX1000 | X | 09/1998 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| 17 | Collier | L12-15 | 4 | 09/1998 | 07129952104 | $1.18 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
