Silencieux d'admission / Filtre for BMW 7 Series E66 760Li (2006)

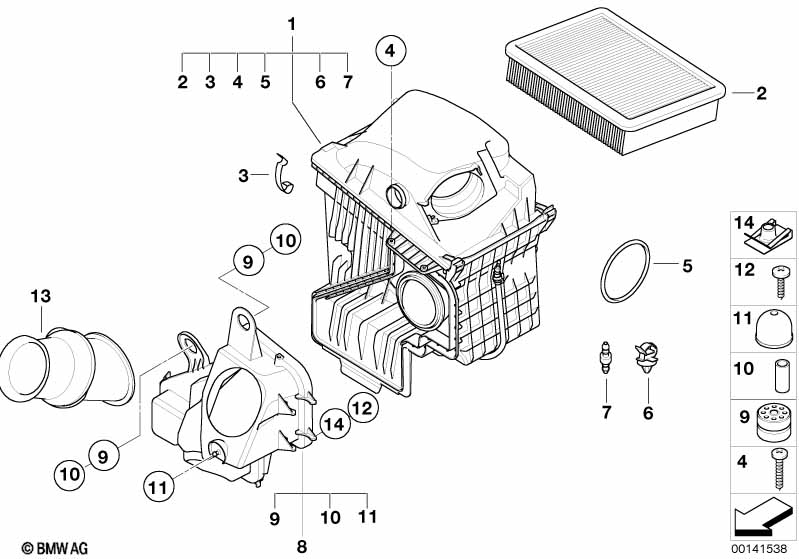

This Silencieux d'admission / Filtre technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silencieux d'admission gauche | ZYL. 1-6 | 1 | 13717580633 | $286.44 | Shop at ECS Tuning | ||||
| 01 | Silencieux d'admission droit | ZYL. 7-12 | 1 | 13717580634 | $286.44 | Shop at ECS Tuning | ||||
| Pour véhicules avec Version pays chauds |
S823A=Oui |
|||||||||
| 01 | Silencieux d'admission gauche | ZYL. 1-6 | 1 | 13717580633 | $286.44 | Shop at ECS Tuning | ||||
| 01 | Silencieux d'admission droit | ZYL. 7-12 | 1 | 13717580634 | $286.44 | Shop at ECS Tuning | ||||
| 02 | Elément filtre à air | 2 | 13717526008 | $31.60 | Shop at ECS Tuning | |||||
| Pour véhicules avec Version pays chauds |
S823A=Oui |
|||||||||
| 02 | Elément filtre à air | 2 | 12/2005 | 13717526008 | $31.60 | Shop at ECS Tuning | ||||
| 03 | Etrier de ressort | L=42MM | 4 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | Vis de matière plastique thermoplastique | NS-TS5X20-ZNS3 | 4 | 07129904960 | $1.53 | Shop at ECS Tuning | ||||
| 05 | Joint torique | 79X6MM | 2 | 13711720540 | $2.48 | Shop at ECS Tuning | ||||
| 06 | Clip de maintien | 2 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 07 | Raccord | D=4MM | 2 | 11151276486 | $1.08 | Shop at ECS Tuning | ||||
| 08 | Boitier air frais gauche | 1 | 13717571983 | $49.92 | Shop at ECS Tuning | |||||
| 08 | Boitier air frais droit | 1 | 13717571984 | $49.92 | Shop at ECS Tuning | |||||
| 09 | Manchon caoutchouc | 4 | 13711742771 | $4.36 | Shop at ECS Tuning | |||||
| 10 | Douille d'ecartement | 4 | 13717571982 | $1.93 | Shop at ECS Tuning | |||||
| 11 | Butoir caoutchouc | 2 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 12 | Vis à tête bombée | 4 | 07149141775 | $0.25 | Shop at ECS Tuning | |||||
| 13 | Conduit d'admission | 2 | 13717501196 | $34.20 | Shop at ECS Tuning | |||||
| 14 | C-clip ecrou | M6-ZNS3 | 4 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
