Soupape de ventilation du reservoir for BMW 7 Series E66 760Li (2006)

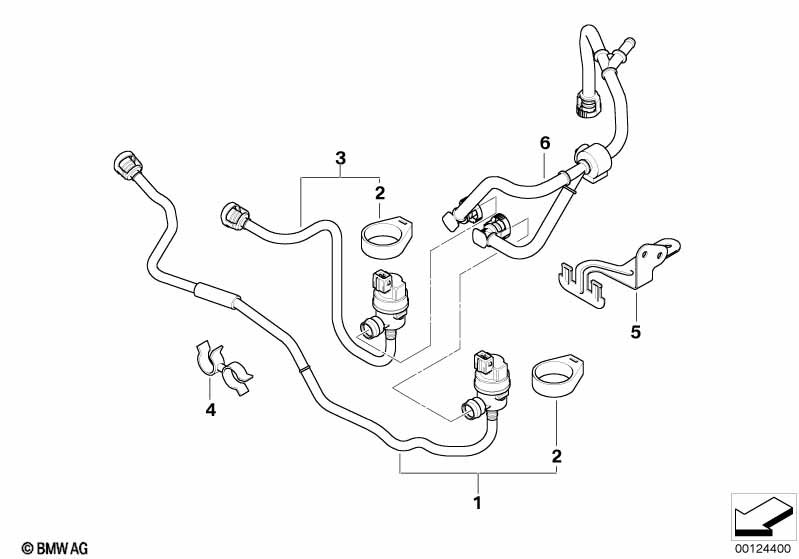

This Soupape de ventilation du reservoir technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vanne dégazage réservoir avec conduite | 1 | 13907515794 | $82.88 | Shop at ECS Tuning | |||||
| 02 | Support de soupape de degagement d'air | 2 | 13907509975 | $5.37 | Shop at ECS Tuning | |||||
| 03 | Vanne dégazage réservoir avec conduite | 1 | 13907515795 | $82.88 | Shop at ECS Tuning | |||||
| 04 | Support de conduite | 1 | 13531720219 | $1.08 | Shop at ECS Tuning | |||||
| 05 | Support de soupape de degagement d'air | 1 | 13907515797 | $5.60 | arrêté | Shop at ECS Tuning | ||||
| 06 | Reniflard de réservoir | 1 | 09/2006 | 13907559336 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
