Conduite de depression clapet d'air add. for BMW 7 Series E66 760Li (2006)

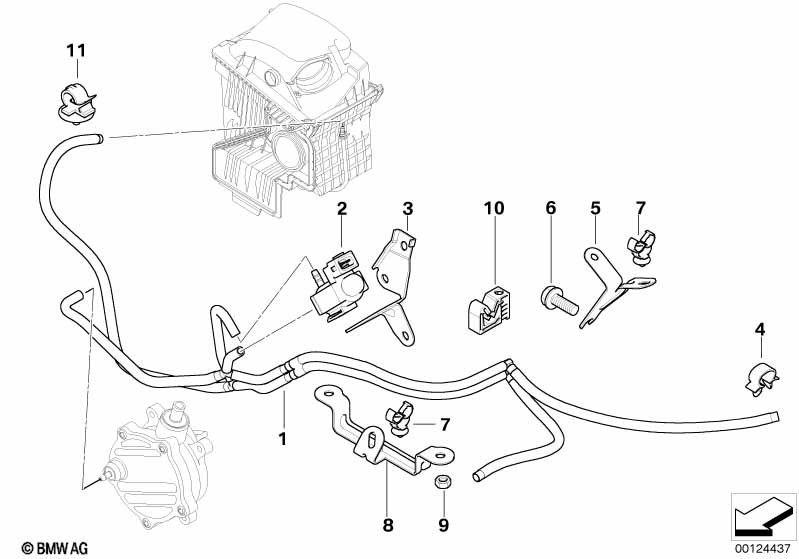

This Conduite de depression clapet d'air add. technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conduite de depression clapet d'air add. | 1 | 13717577730 | $79.63 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Soupape electrique | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| 03 | Serre-flanc de soupape de commutation | 1 | 13717528406 | $5.21 | Shop at ECS Tuning | |||||
| 04 | Support de conduite | D=10,8MM | 1 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Support de conduite de dépress. | 1 | 13717521171 | arrêté | Shop at ECS Tuning | |||||
| 06 | Vis six pans avec rondelle | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Support de conduite | 2 | 61131379351 | $0.68 | Shop at ECS Tuning | |||||
| 08 | Support de conduite de dépress. | 1 | 13717521170 | arrêté | Shop at ECS Tuning | |||||
| 09 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Support de conduite | 1 | 13717519038 | Shop at ECS Tuning | ||||||
| 11 | Clip de maintien | 1 | 61138368029 | $0.43 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
