Conduite d'injection-injecteur for BMW 7 Series E66 760Li (2006)

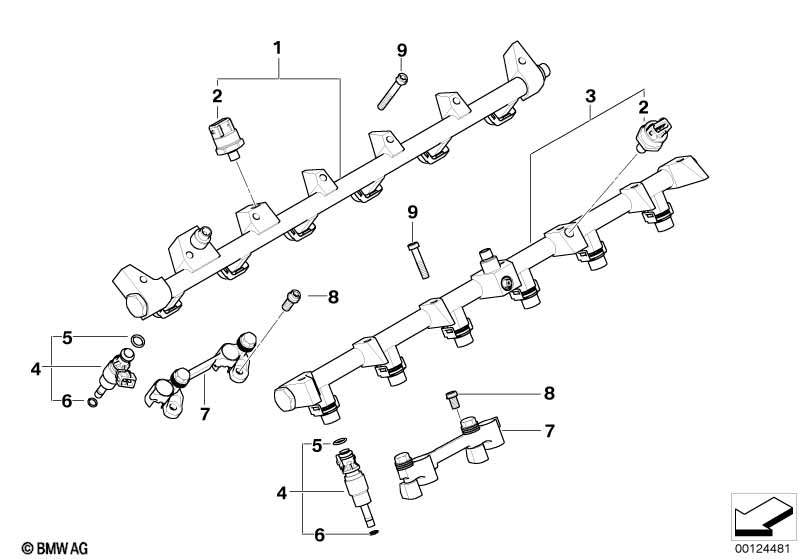

This Conduite d'injection-injecteur technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tuyau d'injection | ZYL. 1-6 | 1 | 13537523439 | $2962.42 | Shop at ECS Tuning | ||||
| 02 | Capteur de pression | 2 | 13537500221 | $267.53 | Shop at ECS Tuning | |||||
| 03 | Tuyau d'injection | ZYL. 7-12 | 1 | 13537523441 | $2962.42 | Shop at ECS Tuning | ||||
| 04 | Soupape d'injection | 12 | 13647512081 | $122.42 | Shop at ECS Tuning | |||||
| 05 | Joint torique | 12 | 13647516741 | $4.38 | Shop at ECS Tuning | |||||
| 06 | Anneau téflon | 12 | 13647509772 | $7.30 | Shop at ECS Tuning | |||||
| 07 | Double support | 6 | 13537515345 | $73.92 | Shop at ECS Tuning | |||||
| 08 | Vis Isa | M7X18 | 12 | 13537521295 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Vis Torx | M7X40 | 14 | 13537521294 | $0.93 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 760Li Conduite d'injection-injecteur?
- This technical diagram illustrates the Conduite d'injection-injecteur within the Formation du mélange group for the 7 Series E66 760Li produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Tuyau d'injection (Part #13537523439).
- Which models use the hardware listed in this Conduite d'injection-injecteur?
- The hardware and components featured in the Conduite d'injection-injecteur are specific to the 7 Series E66 760Li produced during 2006. These technical specifications ensure that parts like the Tuyau d'injection (13537523439) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Conduite d'injection-injecteur assembly?
- Each item in the Conduite d'injection-injecteur corresponds to the numbered list below the illustration. For the 7 Series E66 760Li, you can identify the Tuyau d'injection by locating its position on the schematic, which then links to the official BMW part number 13537523439 for the Formation du mélange section.
