Système injection - conduite carburant for BMW 7 Series E66 760Li (2006)

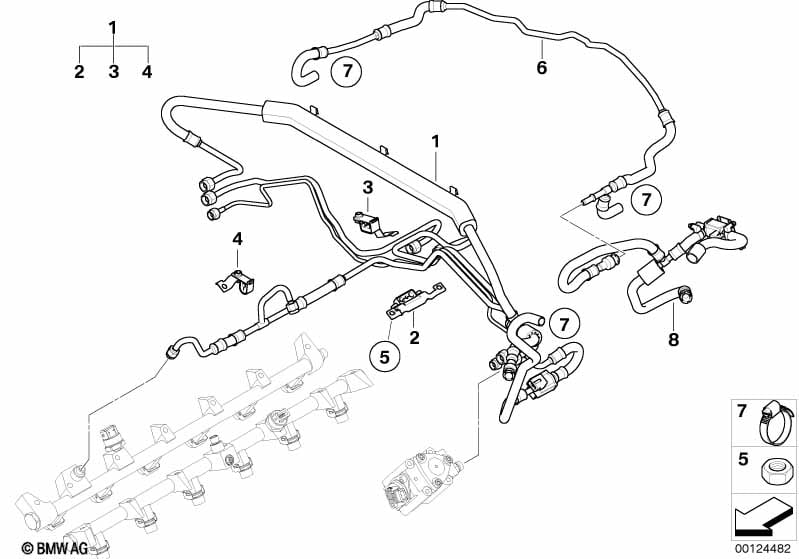

This Système injection - conduite carburant technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conduite de carburant | 1 | 09/2006 | 13537546657 | +vieille matière | Shop at ECS Tuning | ||||
| ne convenant qu'avec | ||||||||||
| -- | Pompe à haute pression | X | 09/2006 | 13517560364 | $2225.33 | Shop at ECS Tuning | ||||
| 02 | Support de conduite | 2 | 13537524174 | $21.42 | +vieille matière | Shop at ECS Tuning | ||||
| 03 | Support de tuyau de pression | 1 | 13537537321 | $10.62 | Shop at ECS Tuning | |||||
| 04 | Support conduite aller | 1 | 13537524176 | $10.62 | Shop at ECS Tuning | |||||
| 05 | Ecrou six pans avec plaque | AM6-8-ZNNIV SI | 4 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Conduite d'aération | 1 | 09/2006 | 13537546658 | +vieille matière | Shop at ECS Tuning | ||||
| ne convenant qu'avec | ||||||||||
| -- | Pompe à haute pression | X | 09/2006 | 13517560364 | $2225.33 | Shop at ECS Tuning | ||||
| 07 | Collier | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Conduite de carburant | 1 | 09/2006 | 13537546659 | $215.45 | arrêté | Shop at ECS Tuning | |||
| ne convenant qu'avec | ||||||||||
| -- | Pompe à haute pression | X | 09/2006 | 13517560364 | $2225.33 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
