Commande d'accélérateur for BMW 3 Series E30 316 (1985)

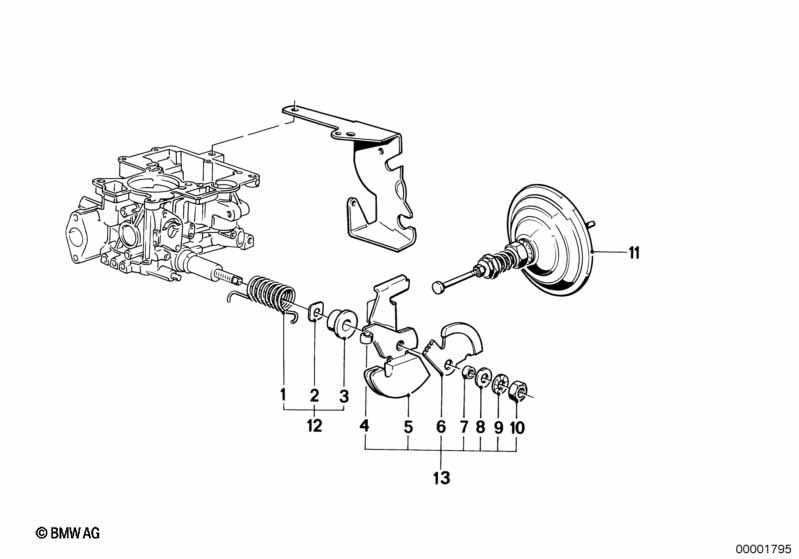

This Commande d'accélérateur technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec 316s mit 75 PS et Grèce version ou Yougoslave version |
V001A=Oui =Oui =Oui |
|||||||||
| 01 | Jeu ressort de torsion | 1 | 13111705881 | arrêté | Shop at ECS Tuning | |||||
| 02 | Plaque d'appui | 1 | 13111278346 | arrêté | Shop at ECS Tuning | |||||
| 03 | Douille | 1 | 13111278350 | arrêté | Shop at ECS Tuning | |||||
| 04 | Levier de papillon | 1 | 13119059000 | arrêté | Shop at ECS Tuning | |||||
| 05 | Levier de papillon | 1 | 13119059000 | arrêté | Shop at ECS Tuning | |||||
| 06 | Levier | 1 | 13111278349 | arrêté | Shop at ECS Tuning | |||||
| 06 | Levier de papillon | 1 | 13119059000 | arrêté | Shop at ECS Tuning | |||||
| 07 | Douille | 1 | 13111278348 | arrêté | Shop at ECS Tuning | |||||
| 07 | Levier de papillon | 1 | 13119059000 | arrêté | Shop at ECS Tuning | |||||
| 08 | Rondelle entretoise | 1 | 13110539204 | $3.63 | arrêté | Shop at ECS Tuning | ||||
| 09 | Disque de securite | 8,4X13 | 1 | 13541267663 | arrêté | Shop at ECS Tuning | ||||
| 10 | Ecrou à six pans | 1 | 13111276930 | $1.98 | arrêté | Shop at ECS Tuning | ||||
| 11 | Boîte de commande | 1 | 13111276653 | Shop at ECS Tuning | ||||||
| 12 | Jeu ressort de torsion | 1 | 13111705881 | arrêté | Shop at ECS Tuning | |||||
| 13 | Levier de papillon | 1 | 13119059000 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
