Silencieux d'admission / Filtre for BMW 4 Series G26 Gran Coupé 430i (2024)

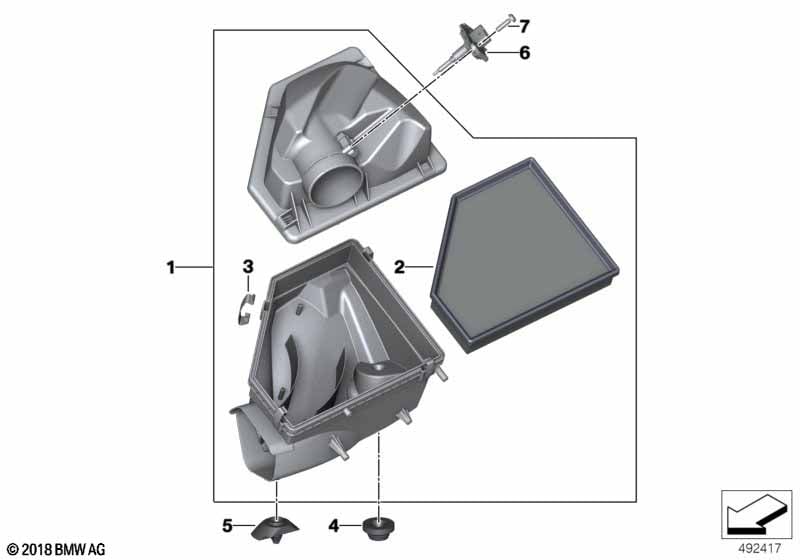

This Silencieux d'admission / Filtre technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silencieux d'admission | 1 | 13718580424 | Shop at ECS Tuning | ||||||
| 02 | Elément filtre à air | 1 | 13718580428 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Version Chine |
L8AAA=Oui |
|||||||||
| 02 | Elément filtre à air | 1 | 13718580428 | Shop at ECS Tuning | ||||||
| 03 | Etrier de ressort | L=42MM | 4 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | Tampon | 2 | 13717625238 | Shop at ECS Tuning | ||||||
| 05 | Support silencieux d'aspiration | 1 | 13718635105 | Shop at ECS Tuning | ||||||
| 06 | Sonde de température de l'air aspiré | 1 | 13628485041 | Shop at ECS Tuning | ||||||
| 07 | Vis | 4X16 | 2 | 07129907551 | Shop at ECS Tuning | |||||
