Vase d'expansion/filtre à charbon actif for BMW 5 Series E12 520

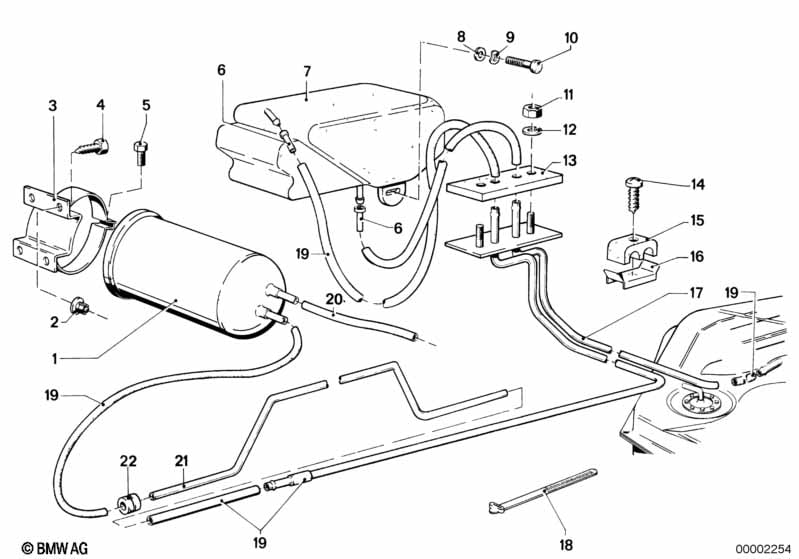

This Vase d'expansion/filtre à charbon actif technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Version Australie |
L810A=Oui |
||||||||
| 01 | Filtre à charbon actif | 1 | 16121108967 | arrêté | Shop at ECS Tuning | |||||
| 02 | Ecrou extensible | 3,9 | 4 | 51135680113 | $0.28 | Shop at ECS Tuning | ||||
| 03 | Collier | 1 | 16111112375 | $5.00 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis à tôle | ST4,8X16-U1-C- | 4 | 07119901295 | Shop at ECS Tuning | |||||
| 05 | Vis six pans | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Raccord reducteur | 3 | 16120480125 | $1.48 | Shop at ECS Tuning | |||||
| 07 | Réservoir tampon | 1 | 16111111351 | $87.50 | arrêté | Shop at ECS Tuning | ||||
| 08 | Plaque d'appui | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Rondelle élastique noire | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Vis à tête bombée | M6X16 | 1 | 07119906423 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Ecrou à six pans autobloquant | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Plaque d'appui | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 13 | Joint | 1 | 16121112683 | arrêté | Shop at ECS Tuning | |||||
| 14 | Vis auto filetante | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 15 | Piece de serrage | X | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 16 | Support | X | 05/1974 | 16121155060 | $1.08 | Shop at ECS Tuning | ||||
| 17 | Conduite de ventilation | 1 | 05/1974 | 16121112571 | arrêté | Shop at ECS Tuning | ||||
| 17 | Conduite de ventilation | 1 | 05/1974 | 16121114203 | $31.21 | arrêté | Shop at ECS Tuning | |||
| 18 | Attache-câble | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 19 | Tuyau de carburant | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 20 | Tuyau de carburant | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 21 | Conduite de ventilation | 3165MM | 1 | 16121114498 | $13.73 | arrêté | Shop at ECS Tuning | |||
| 22 | Douille | 1 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
