Filtre a charbon actif / conduites for BMW 5 Series E34 530i (1995)

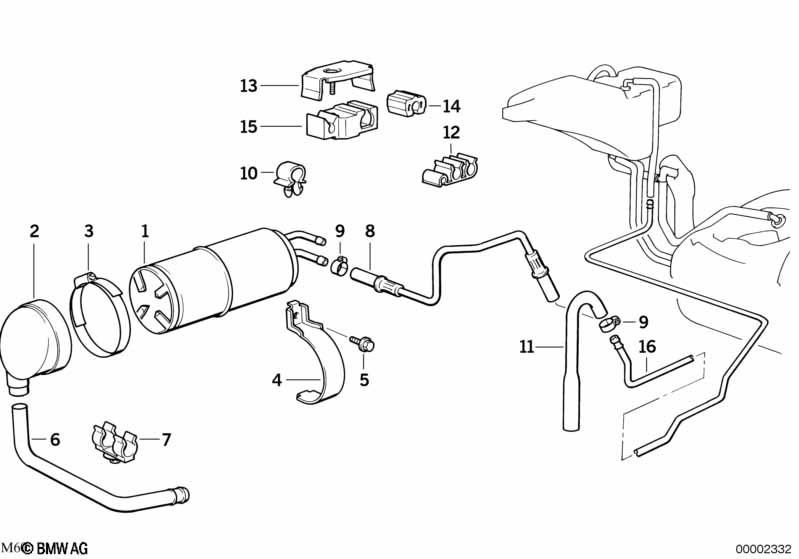

This Filtre a charbon actif / conduites technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Suppression pôt catalytique |
S199A=Non |
|||||||||
| 01 | Filtre à charbon actif | 1 | 16131180463 | $87.89 | +vieille matière | Shop at ECS Tuning | ||||
| 02 | Raccord | 1 | 16111179448 | $14.58 | Shop at ECS Tuning | |||||
| 03 | Collier | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 04 | Support de filtre à charbon actif | 1 | 16131181073 | $5.33 | Shop at ECS Tuning | |||||
| 05 | Vis six pans avec rondelle | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Tuyau | 1 | 16131181508 | $12.02 | arrêté | Shop at ECS Tuning | ||||
| 07 | Support | D = 13MM | 1 | 61131371074 | $2.52 | arrêté | Shop at ECS Tuning | |||
| 08 | Conduite de ventilation | 1 | 16131181810 | $19.12 | arrêté | Shop at ECS Tuning | ||||
| 09 | Collier | 12,8-15,3 | 2 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Support de conduite | D=10,8MM | 3 | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 13 | Support | 2 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 14 | Piece de serrage | 2 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 16 | Conduite de ventilation | 1 | 16131181523 | $32.92 | Shop at ECS Tuning | |||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
