Systeme de refroidissement en carburant for BMW 3 Series E30 325e (1987)

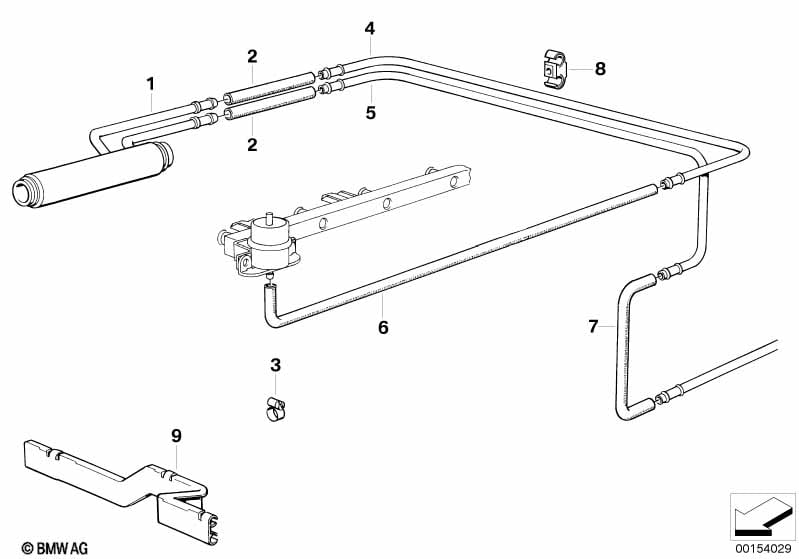

This Systeme de refroidissement en carburant technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Version Japon |
L807A=Oui |
|||||||||
| 01 | Tuyau d'aspiration evaporat.-compresseur | R12 | 1 | 03/1992 | 64531377821 | $164.88 | arrêté | Shop at ECS Tuning | ||
| 02 | Tuyau de carburant | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 03 | Collier | L12-15 | 8 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Tuyau de retour | 1 | 16121179318 | $30.73 | arrêté | Shop at ECS Tuning | ||||
| 05 | Tuyau de retour | 1 | 16121179319 | $30.73 | arrêté | Shop at ECS Tuning | ||||
| 06 | Tuyau de carburant | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 07 | Tuyau de carburant | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 08 | Support de tuyau du combustible | 3 | 16126756924 | $1.08 | Shop at ECS Tuning | |||||
| 09 | Recouvrement | 1 | 16121179404 | $6.11 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
