Filtre a charbon act./aeration carburant for BMW 1502-2002tii 1502 (1975)

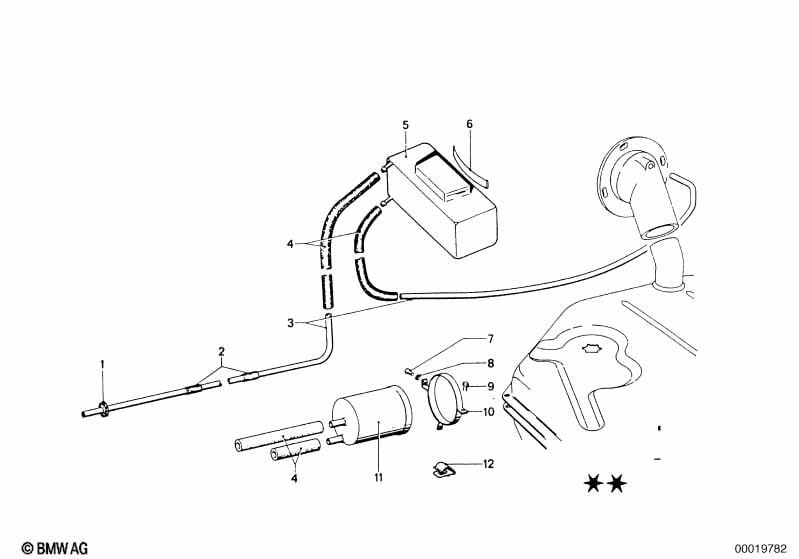

This Filtre a charbon act./aeration carburant technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Version Japon ou Version Australie |
L807A=Oui L810A=Oui |
|||||||||
| 01 | Douille | 10,5MM | 2 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 02 | Manchon de caoutchouc | 32 | 34324050540 | $1.32 | Shop at ECS Tuning | |||||
| 03 | Conduite de ventilation | 2 | 03/1971 | 07/1977 | 16121108780 | $2.06 | arrêté | Shop at ECS Tuning | ||
| 04 | Tuyau de carburant | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 05 | Réservoir tampon | 1 | 16111104981 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 06 | Ressort de fixation | 1 | 16111105249 | arrêté | Shop at ECS Tuning | |||||
| 07 | Vis six pans | M6X12-8.8-ZNNIV | 2 | 03/1971 | 07/1977 | 07119905524 | $0.27 | Shop at ECS Tuning | ||
| 09 | Vis six pans | M6X16-8.8-ZNS3 | 1 | 03/1971 | 07/1977 | 07119904357 | $0.36 | Shop at ECS Tuning | ||
| 10 | Collier | 1 | 03/1971 | 07/1977 | 16121108972 | $4.12 | Shop at ECS Tuning | |||
| 11 | Filtre à charbon actif | 1 | 03/1971 | 07/1977 | 16121108967 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
