Filtre a charbon act./aeration carburant for BMW 5 Series E60 LCI 530i (2007)

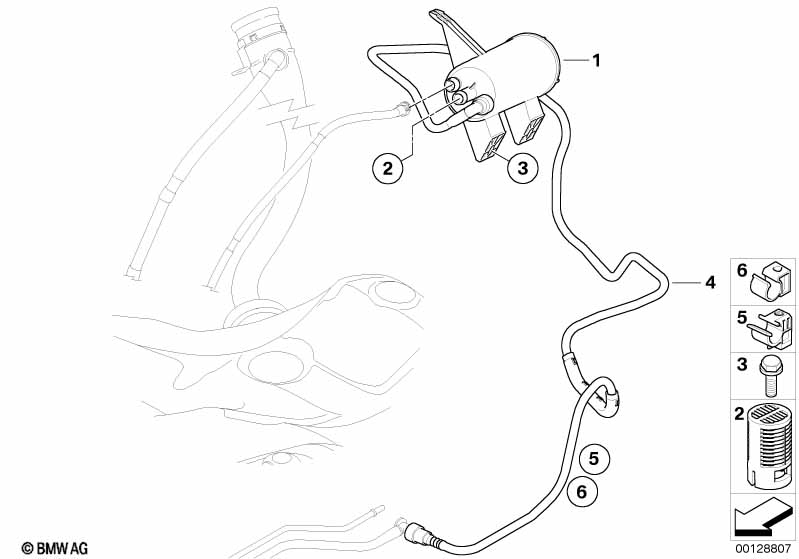

This Filtre a charbon act./aeration carburant technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtre à charbon actif | 1 | 16137200075 | $131.82 | Shop at ECS Tuning | |||||
| Pour véhicules avec Equipement pour essence plombée |
S199A=Non |
|||||||||
| 03 | Vis six pans avec rondelle | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 04 | Tubulure de balayage AR | 1 | 16136761701 | Shop at ECS Tuning | ||||||
| 05 | Clip de conduite | D=12MM | 7 | 16136760583 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Clip de conduite | D=12MM | 1 | 16126762696 | $1.05 | Shop at ECS Tuning | ||||
