Systeme de refroidissement - durits for BMW 1500-2000CS 1800 (1971)

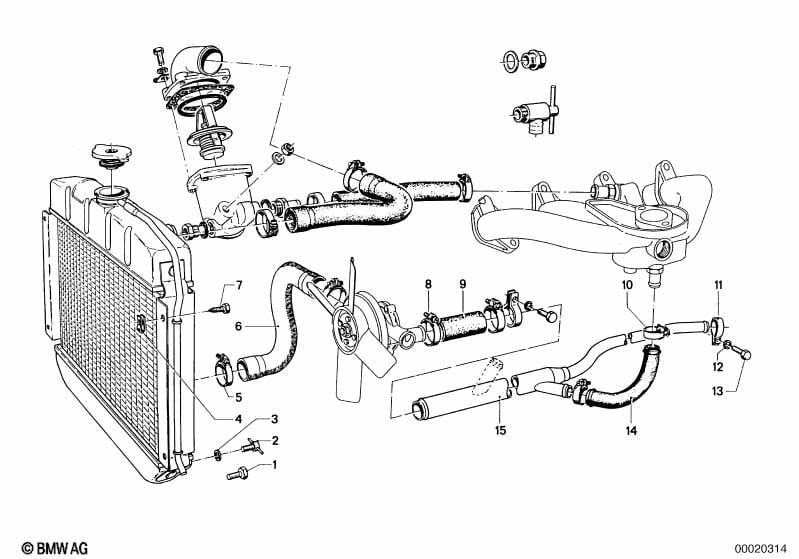

This Systeme de refroidissement - durits technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vis bouchon | 1 | 17111101872 | $2.53 | arrêté | Shop at ECS Tuning | ||||
| 02 | Vis bouchon | D=6MM | 1 | 17114670120 | arrêté | Shop at ECS Tuning | ||||
| 03 | Rondelle | A 6,4 | 1 | 07119931048 | arrêté | Shop at ECS Tuning | ||||
| 03 | Anneau d'étanchéité | A08X11,5-CU | 1 | 07119963042 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Ecrou tôlé | ST4,2-2 | 4 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Collier | L37-43 | 8 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 06 | Durit | 1 | 17120688180 | arrêté | Shop at ECS Tuning | |||||
| 07 | Vis à tôle | B6,5X16 | 4 | 12138530118 | $0.40 | arrêté | Shop at ECS Tuning | |||
| 08 | Collier | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Durit | 1 | 11531274591 | $6.02 | arrêté | Shop at ECS Tuning | ||||
| 10 | Collier | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Collier de tuyau | 1 | 11530688160 | arrêté | Shop at ECS Tuning | |||||
| 12 | Rondelle grower | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Vis six pans | M6X16-8.8-ZNS3 | 2 | 07119904357 | $0.36 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
