Pieces de fixation de radiateur for BMW 7 Series E65 745d (2004)

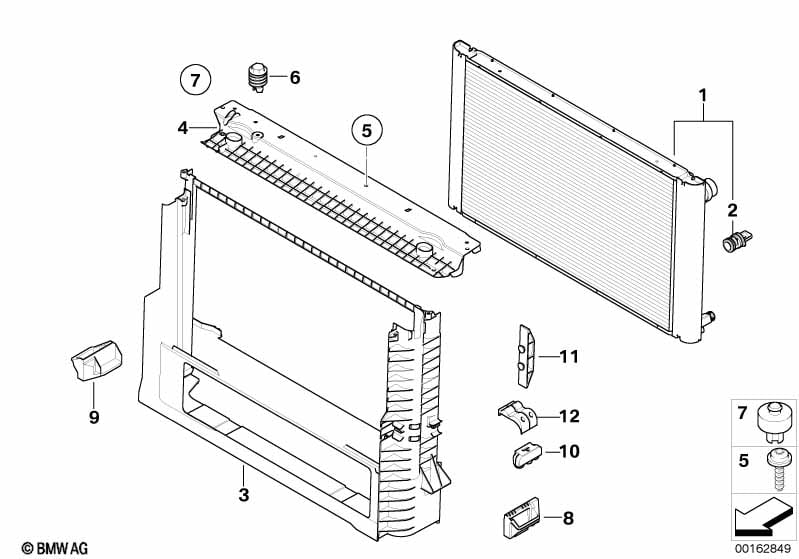

This Pieces de fixation de radiateur technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiateur du liquide de refroidissement | 1 | 17117795138 | $466.63 | Shop at ECS Tuning | |||||
| 02 | Vis de vidange de radiateur | 1 | 17112247346 | $9.22 | Shop at ECS Tuning | |||||
| 03 | Porte-modules | 1 | 17112248481 | Shop at ECS Tuning | ||||||
| 04 | Recouvrement porte-modules | 1 | 17112249878 | arrêté | Shop at ECS Tuning | |||||
| 05 | Vis autotaraudeuse | D6X20 ZNS3 | 4 | 17117536971 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Support de radiateur d'eau | 2 | 17117514402 | $5.83 | Shop at ECS Tuning | |||||
| 07 | Pièce de calage | 3 | 17117508501 | $1.97 | Shop at ECS Tuning | |||||
| 08 | Support inférieure radiateur | 1 | 17117508016 | $6.17 | Shop at ECS Tuning | |||||
| 09 | Support inférieure radiateur | 1 | 17117508017 | $6.17 | Shop at ECS Tuning | |||||
| 10 | Silentbloc | 2 | 17101439113 | $8.20 | Shop at ECS Tuning | |||||
| 11 | Entretoise | 2 | 17117540680 | $2.18 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
