Réservoir d'expans. eau de refroidissem. for BMW 7 Series E65 745d (2004)

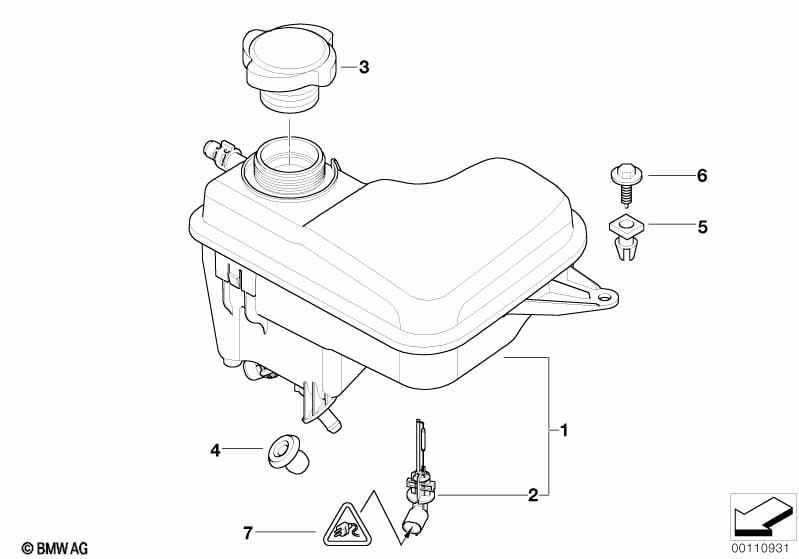

This Réservoir d'expans. eau de refroidissem. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Réservoir tampon | 1 | 17137800293 | +vieille matière | Shop at ECS Tuning | |||||
| 02 | Contacteur niveau liquide refroidiss. | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 03 | Bouchon de radiateur | 1,4BAR | 1 | 17137639023 | Shop at ECS Tuning | |||||
| 04 | Douille | 1 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 05 | Ecrou extensible | BLACK | 2 | 63128374670 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Vis Torx | K50 X 18 | 2 | 17117510907 | $0.60 | Shop at ECS Tuning | ||||
| 07 | kit de rép. boîtier femelle | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Contact à douille MQS ELA avec câble | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact à douille MQS ELA avec câble | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745d Réservoir d'expans. eau de refroidissem.?
- This technical diagram illustrates the Réservoir d'expans. eau de refroidissem. within the Radiateur group for the 7 Series E65 745d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Réservoir tampon (Part #17137800293).
- Which models use the hardware listed in this Réservoir d'expans. eau de refroidissem.?
- The hardware and components featured in the Réservoir d'expans. eau de refroidissem. are specific to the 7 Series E65 745d produced during 2004. These technical specifications ensure that parts like the Réservoir tampon (17137800293) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Réservoir d'expans. eau de refroidissem. assembly?
- Each item in the Réservoir d'expans. eau de refroidissem. corresponds to the numbered list below the illustration. For the 7 Series E65 745d, you can identify the Réservoir tampon by locating its position on the schematic, which then links to the official BMW part number 17137800293 for the Radiateur section.
