Échangeur air-air/radiat.dir. assist. for BMW 7 Series E65 745d (2004)

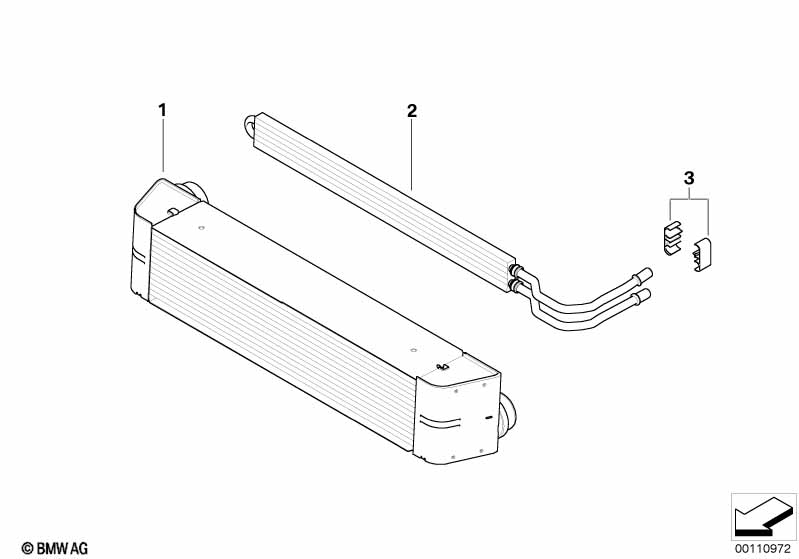

This Échangeur air-air/radiat.dir. assist. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Refroidisseur d'air de suralimentation | 1 | 17517795386 | arrêté | Shop at ECS Tuning | |||||
| 02 | Radiateur assistance de direction | 1 | 17217800368 | Shop at ECS Tuning | ||||||
| 03 | Clip | 2 | 17117786681 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745d Échangeur air-air/radiat.dir. assist.?
- This technical diagram illustrates the Échangeur air-air/radiat.dir. assist. within the Radiateur group for the 7 Series E65 745d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Refroidisseur d'air de suralimentation (Part #17517795386).
- Which models use the hardware listed in this Échangeur air-air/radiat.dir. assist.?
- The hardware and components featured in the Échangeur air-air/radiat.dir. assist. are specific to the 7 Series E65 745d produced during 2004. These technical specifications ensure that parts like the Refroidisseur d'air de suralimentation (17517795386) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Échangeur air-air/radiat.dir. assist. assembly?
- Each item in the Échangeur air-air/radiat.dir. assist. corresponds to the numbered list below the illustration. For the 7 Series E65 745d, you can identify the Refroidisseur d'air de suralimentation by locating its position on the schematic, which then links to the official BMW part number 17517795386 for the Radiateur section.
