Buse ventilateur/ventilateur for BMW 7 Series E65 745d (2004)

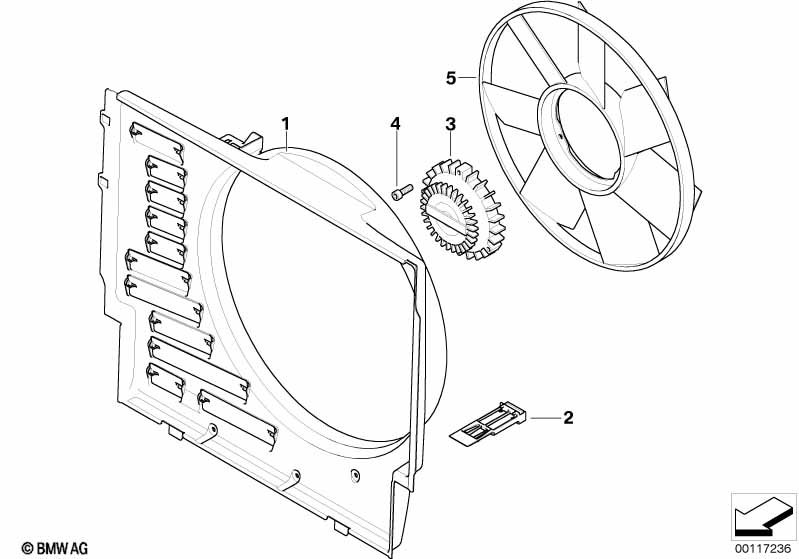

This Buse ventilateur/ventilateur technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Buse ventilateur | 1 | 17112248480 | Shop at ECS Tuning | ||||||
| 02 | Support p cadre ventilateur | 2 | 17117788324 | Shop at ECS Tuning | ||||||
| 03 | Coupleur de ventilateur | 1 | 11522249216 | $202.21 | Shop at ECS Tuning | |||||
| 04 | Vis Isa | M6X16-8.8-ZNNIV | 3 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Ventilateur | D=420MM | 1 | 11522249373 | $71.15 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745d Buse ventilateur/ventilateur?
- This technical diagram illustrates the Buse ventilateur/ventilateur within the Radiateur group for the 7 Series E65 745d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Buse ventilateur (Part #17112248480).
- Which models use the hardware listed in this Buse ventilateur/ventilateur?
- The hardware and components featured in the Buse ventilateur/ventilateur are specific to the 7 Series E65 745d produced during 2004. These technical specifications ensure that parts like the Buse ventilateur (17112248480) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Buse ventilateur/ventilateur assembly?
- Each item in the Buse ventilateur/ventilateur corresponds to the numbered list below the illustration. For the 7 Series E65 745d, you can identify the Buse ventilateur by locating its position on the schematic, which then links to the official BMW part number 17112248480 for the Radiateur section.
