Échang. therm./conduite rad. huile BV for BMW 7 Series E65 745d (2004)

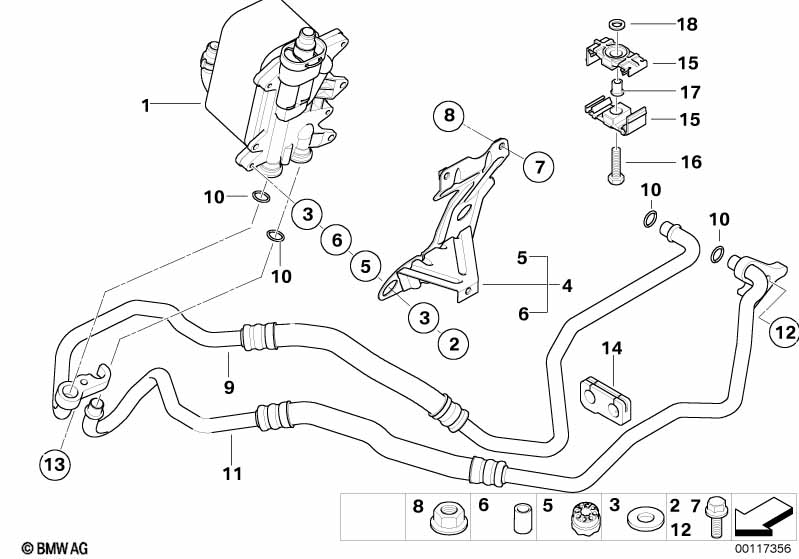

This Échang. therm./conduite rad. huile BV technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Échang. therm. | 1 | 17217803830 | Shop at ECS Tuning | ||||||
| 02 | Vis six pans | 3 | 51341950474 | $0.59 | Shop at ECS Tuning | |||||
| 05 | Silentbloc | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 06 | Douille d'ecartement | ZNS3 | 3 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 07 | Vis six pans avec rondelle | M6X55-Z1 | 3 | 07119904526 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Ecrou six pans avec plaque | AM6-8-ZNNIV SI | 3 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Conduite de radiateur d'huile d'entree | 1 | 17227794076 | +vieille matière | Shop at ECS Tuning | |||||
| 10 | Joint torique | 13,4X1,78 | 4 | 17222245358 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Conduite de radiateur d'huile de retour | 1 | 17227794077 | +vieille matière | Shop at ECS Tuning | |||||
| 12 | Vis d'arret | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| 13 | Vis six pans avec rondelle | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Manchon caoutchouc | 1 | 17227789254 | Shop at ECS Tuning | ||||||
| 15 | Support de conduite d'huile | 6 | 17201712209 | $3.52 | Shop at ECS Tuning | |||||
| 16 | Vis six pans | M6X35-8.8-ZNS3 | 3 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Douille entretoise | D6 | 3 | 17227798686 | $3.32 | Shop at ECS Tuning | ||||
| 18 | Plaque d'appui | A6,4-200HV-ZNS3 | 3 | 07119903791 | $0.11 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
