Systeme de refroidissement - durit for BMW 7 Series E65 745d (2004)

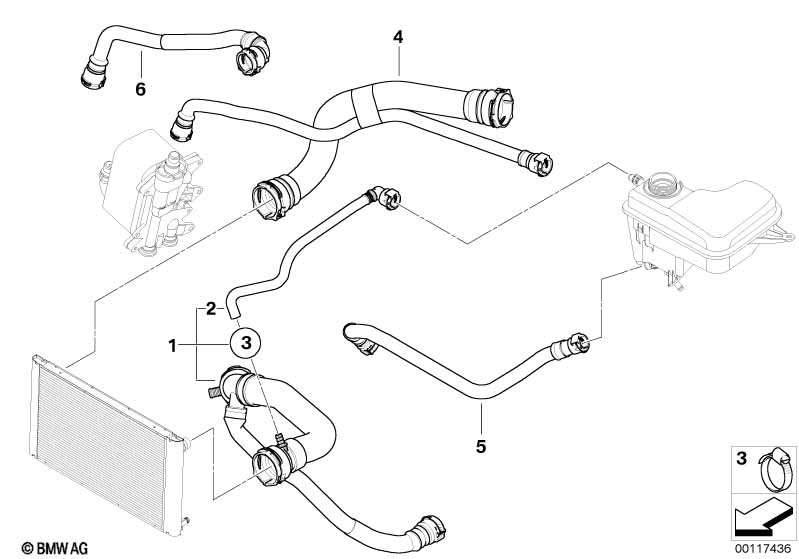

This Systeme de refroidissement - durit technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tuyau de refroidissement | 1 | 17127790845 | +vieille matière | Shop at ECS Tuning | |||||
| 02 | Tuyau flexible de ventilation | 1 | 17127789217 | arrêté | Shop at ECS Tuning | |||||
| 03 | Collier | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Tuyau de refroidissement | 1 | 17127791862 | +vieille matière | Shop at ECS Tuning | |||||
| 05 | Tuyau de refroidissement | 1 | 17127791842 | +vieille matière | Shop at ECS Tuning | |||||
| 06 | Tuyau de refroidissement | 1 | 17122354126 | +vieille matière | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745d Systeme de refroidissement - durit?
- This technical diagram illustrates the Systeme de refroidissement - durit within the Radiateur group for the 7 Series E65 745d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Tuyau de refroidissement (Part #17127790845).
- Which models use the hardware listed in this Systeme de refroidissement - durit?
- The hardware and components featured in the Systeme de refroidissement - durit are specific to the 7 Series E65 745d produced during 2004. These technical specifications ensure that parts like the Tuyau de refroidissement (17127790845) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Systeme de refroidissement - durit assembly?
- Each item in the Systeme de refroidissement - durit corresponds to the numbered list below the illustration. For the 7 Series E65 745d, you can identify the Tuyau de refroidissement by locating its position on the schematic, which then links to the official BMW part number 17127790845 for the Radiateur section.
