Échang. therm./conduite rad. huile BV for BMW 7 Series F02 740Li
This Échang. therm./conduite rad. huile BV technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conduite de radiateur d'huile d'entree | 1 | 07/2009 | 17227584007 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Support de conduite d'huile | 1 | 07/2009 | 17227589762 | Shop at ECS Tuning | |||||
| 01 | Conduite de radiateur d'huile d'entree | 1 | 07/2009 | 17227584007 | Shop at ECS Tuning | |||||
| 02 | Conduite de radiateur d'huile de retour | 1 | 07/2009 | 17227584008 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Support de conduite d'huile | 1 | 07/2009 | 17227589762 | Shop at ECS Tuning | |||||
| 02 | Conduite de radiateur d'huile de retour | 1 | 07/2009 | 17227584008 | Shop at ECS Tuning | |||||

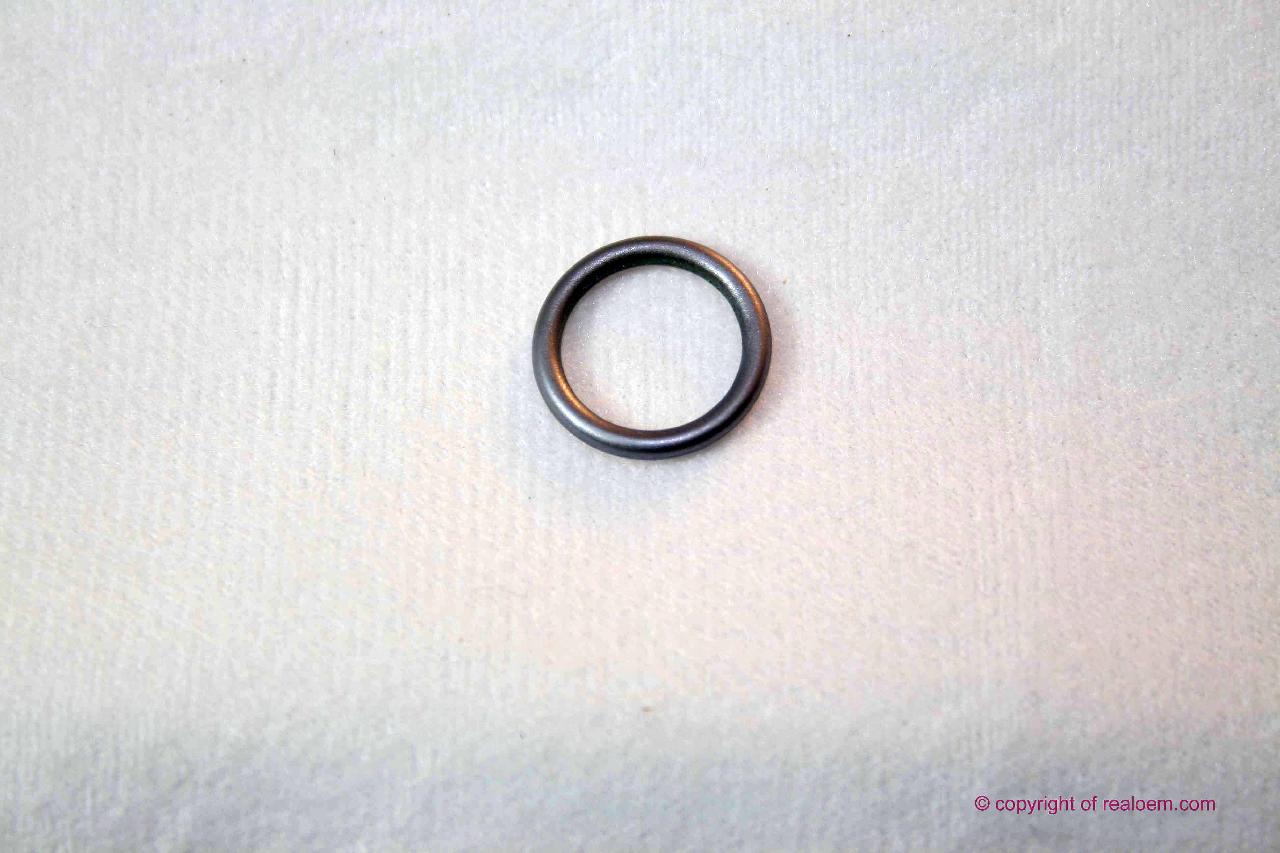

| 03 | Joint torique | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Support de conduite d'huile | 1 | 17227589762 | Shop at ECS Tuning | ||||||
| 05 | Douille entretoise | 1 | 17227579121 | $3.32 | Shop at ECS Tuning | |||||
| 06 | Clip de conduite | 1 | 17227575461 | $0.42 | Shop at ECS Tuning | |||||
| 07 | Vis six pans avec rondelle | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Vis d'arret | M8X28-Z3 | 1 | 17227555715 | $0.78 | Shop at ECS Tuning | ||||
| 09 | Refroidisseur d'huile de BV | 1 | 17217638678 | Shop at ECS Tuning | ||||||
| 10 | Refroidisseur d'huile de BV | 1 | 03/2015 | 17217638678 | Shop at ECS Tuning | |||||
| 11 | Ecrou six pans avec plaque | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Support de nid de radiateur | 1 | 17227585391 | Shop at ECS Tuning | ||||||
| 13 | Tige filetée | M8X40 | 3 | 07129903964 | Shop at ECS Tuning | |||||
| 14 | Ecrou à six pans | M8-ZNS3 | 3 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 15 | Support de nid de radiateur | 1 | 17227585390 | Shop at ECS Tuning | ||||||
| 16 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 17 | Douille | D=25 | 3 | 17212246033 | $1.97 | Shop at ECS Tuning | ||||
| 18 | Douille entretoise | 3 | 17217546491 | $4.20 | Shop at ECS Tuning | |||||
| 19 | Vis six pans | M6X30-8.8-ZNS3 | 3 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
